Steelmate PTS411M7 parking assistant

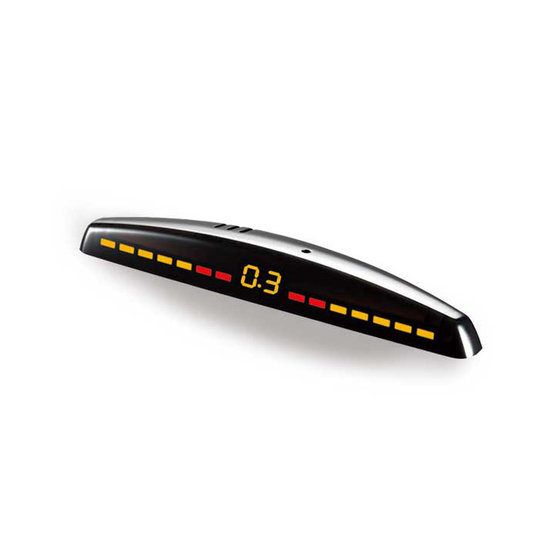

Parking assistant STEELMATE with the option to install as  Rear or Front, with 4 black sensors and Display M7. Dual intelligent functions for cars with tow-bar, spare wheel or other protrusion. New functions of sensitivity setting, learning function. The unit is designed for 12V/24V on board voltage cars.

When installing the parking assist in the front bumper, it is necessary to use EXT CABLE KIT extension cables.

System Description:

• sensors with fixed assembly to the bumper
• fast obstacle detection
• sound and visual alarm indicates the position of obstacles
• excellent coverage of the entire area behind or before the vehicle
• when is the obstacle at a distance of 30 cm from the vehicle, you will hear a continuous tone
• auto detection (automatic identification of the defective sensor)
• excellent coverage of the entire area behind the vehicle, horizontal scan angle of 110° ± 15°
• angle washers  0°, 4°, 10° included in the package
• sensors core diameter 14 mm
• mounting hole 18,8 mm
• sensors supplied with 10 cm lenght cable and waterproof connector that ensures easy replacement if necessary
• adjustable sensitivity of the sensors on the control unit (2 levels)
• the unique learning function (ignoring permanent obstacle - tow bar, spare wheel, frame, ...)
• with additional ACC wire (pink wire) for stable power supply(optional connection)
• control unit is not waterproof, must be installed in dry place
• length of wires to sensors 2.3m

Note: The control unit contains a 3 PIN connector for displayconnection, display with old 8 PIN connector is not compatible!
