BC ADI-14 Rearview camera Q7, A4, A5

| BC ADI-14

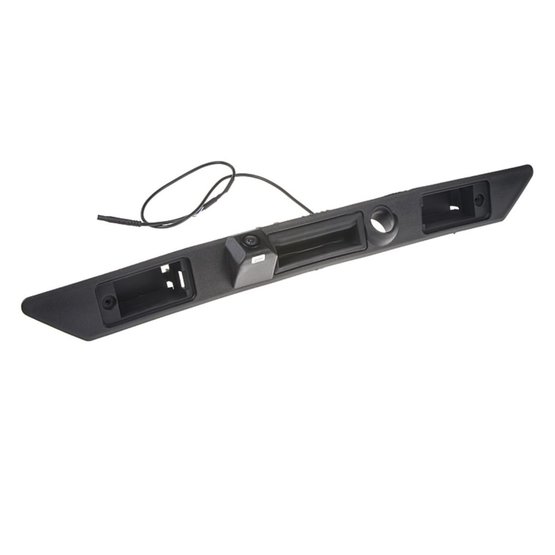

OEM Rearview Camera integrated into the trunk handle. The camera replaces the original lighting housing and trunk switch handle. For Audi A4, A5, A6, Q7 cars.

Show price
BC ADI-14 Rearview camera Q7, A4, A5

OEM Rearview Camera integrated into the trunk handle. The camera replaces the original lighting housing and trunk switch handle. For Audi A4, A5, A6, Q7 cars.

Suitable for the car models:

  • Audi A3 (04/2012-) (8V1)
  • Audi A4 (2011-)
  • Audi A5 (2011-)
  • Audi A6 (11/2010-) (C7)
  • Audi Q7 (2011-2013)

Technical parameters:

  • sensor: PC3089 1/3"
  • option to enable/disable to display the guide lines
  • electronic Aperture: 1/60 1/10000 sec.
  • minimum lighting: 0.1Lux
  • signal-to-noise ratio:> 48dB
  • TV system: NTSC (supported by each monitor/head unit)
  • number of TV lines: 600
  • effective pixels 668 × 576 pixels
  • weather protection: IP67
  • view angle: 170°
  • camera body: durable plastics "private housing"
  • image display: mirror
  • operating temperature from -30 °C to + 70 °C
  • AGC, BLC, white balance: automatically
  • signal cable: 6.2 m long with CINCH / RCA connector
  • video output: 1.0V / 75 Ohm
  • power cord length: 1m
  • power supply: 12V DC
  • consumption: <1W

Camera dimensions:

  • lenght 443 mm
  • pitch between screws 173 mm and 364 mm


Note: The camera is designed for aftermarket radio units with RCA AV input. Connecting to an original radio unit may require to add the video adapter for parking camera!

Parameters

Model of the car A3, A4, A5, Q7, A6
Use OEM
For cars passanger
Brand of the car Audi
Signal analog
Plugs CVBS-RCA
Weight 0.456 kg
