BC BMW-04 Rearview camera BMW 1 6 Z4

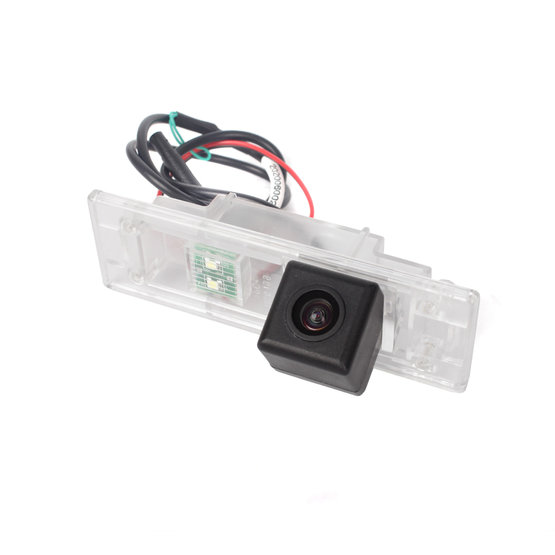

OEM colour parking camera to install into the rear licence plate light body. New LED light, as a replacement of the original light, is included.
OEM colour parking camera to install into the rear licence plate light body. New LED light, as a replacement of the original light, is included.
Suitable for the car models:
- BMW1 11/2003-09/2012 (E81,E87)
- BMW1 11/2010- (F20,F21)
- BMW6 01/2004-2/2010 (E63, E64)
- BMW6 03/2011- (F12, F13)
- BMWZ4 02/2003-08/2008 (E85)
- BMWZ4 05/2009- (E89)
Technical parameters:
- sensor: PC3089 1/3"
- option to enable/disable to display the guide lines
- electronic Aperture: 1/60 1/10000 sec.
- minimum lighting: 0.1Lux
- signal-to-noise ratio:> 48dB
- TV system: NTSC (supported by each monitor/head unit)
- number of TV lines: 600
- effective pixels 668 × 576 pixels
- weather protection: IP67
- view angle: 170°
- camera body: durable plastics "private housing"
- image display: mirror
- operating temperature from -30 °C to + 70 °C
- AGC, BLC, white balance: automatically
- signal cable: 6.2 m long with CINCH / RCA connector
- video output: 1.0V / 75 Ohm
- power cord length: 1m
- power supply: 12V DC
- consumption: <1W
Camera dimensions:
- base 22 x 104 mm
- pitch between attachment points 90 mm
Note: The camera is designed for aftermarket radio units with RCA AV input. Connecting to an original radio unit may require to add the video adapter for parking camera!
Parameters
Brand of the car | BMW |
---|---|
Model of the car | 6, Z4, 1, 1 (E87) |
Signal | analog |
Plugs | CVBS-RCA |
Use | OEM |
For cars | passanger |
Weight | 0.282 kg |
