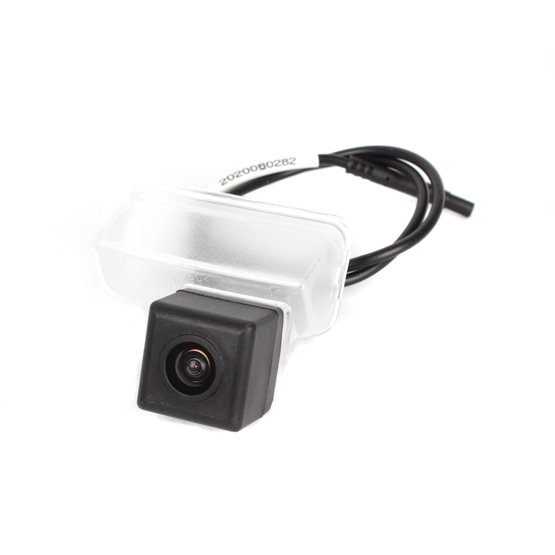

BC CIT-11 Rearview camera C3 C4 C5 Berlingo

OEM colour parking camera to install into the rear licence plate light body. There is a special place in the camera body assigned for the light bulb replaced from the original lamp. For Citroen C3, C4, C5, Berlingo, Saxo, Xsara cars.

For cars:

• Peugeot 206 2001~2010
• Peugeot 306 5D Hatchback Estate 1993~2002
• Peugeot 207 Sedan 2008~2014
• Peugeot 307 Sedan Estate 2001~2008
• Peugeot 308 5D Station Wagon
• Peugeot 406 5D Estate Wagon 1995~2008
• Peugeot 407 5D Estate Wagon 2005~2010Peugeot 5008 5D MPV 2009~2014
• Citroen C3 Picasso 2009~2014
• Citroen C3 5D PICASSO
• Citroen C4 Picasso 2006~2013
• Citroen C4 5D PICASSO SW (STATION WAGON)
• Citroen C5 II/ C6
• Citroen C5 RD/TD 2006~2016
• Citroen C6 2005-2012
• Citroen DS4 DS 4 2011~2015
• Citroen Berlingo (B9) Minivan 2008+

Technical parameters:

• sensing sensor: CMOS 1/3"
• option to enable/disable to display the guide lines
• electronic shutter: 1/60 1/10000 sec.
• minimum lighting: 0.05Lux
• signal-to-noise ratio:> 48dB
• TV system: NTSC
• number of TV lines: 700 TVL
• weather protection: IP67
• horizontal scanning angle: 120°
• image display: mirror image
• white balance: automatic
• working temperature from -30 °C to + 70 °C
• AGC, BLC, white balance: automatic
• signal cable: length 8 m (CINCH / RCA connector)
• double shielding of the signal cable
• power cord: 30cm
• video output: 1.0V / 75 Ohm
• power supply: 12V DC
• consumption: <1W

Camera dimensions:

• base 55 x 29 mm

Note: The camera is designed for aftermarket radio units with RCA AV input. Connecting to an original radio unit may require to add the video adapter for parking camera!
