BC FORD-06 Rearview camera Ford

| BC FORD-06

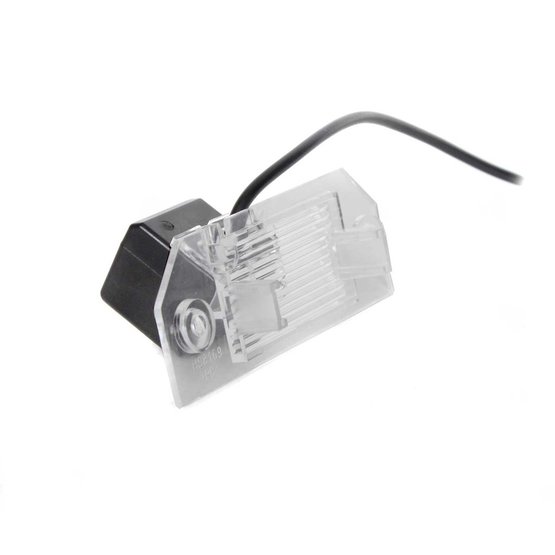

OEM colour parking camera to install into the rear licence plate light body. New LED light, as a replacement of the original light, is included.


OEM colour parking camera to install into the rear licence plate light body. New LED light, as a replacement of the original light, is included.

Suitable for the car models:

  • FORD Focus [C170] (2001-2007)
  • FORD C-Max (2007-2009)
  • FORD Mondeo (2000-2007) sedan, hatchback, combi

Technical parameters:

  • sensor: PC3089 1/3"
  • option to enable/disable to display the guide lines
  • electronic Aperture: 1/60 1/10000 sec.
  • minimum lighting: 0.1Lux
  • signal-to-noise ratio:> 48dB
  • TV system: NTSC (supported by each monitor/head unit)
  • number of TV lines: 600
  • effective pixels 668 × 576 pixels
  • weather protection: IP67
  • view angle: 170°
  • camera body: durable plastics "private housing"
  • image display: mirror
  • operating temperature from -30 °C to + 70 °C
  • AGC, BLC, white balance: automatically
  • signal cable: 6.2 m long with CINCH / RCA connector
  • video output: 1.0V / 75 Ohm
  • power cord length: 1m
  • power supply: 12V DC
  • consumption: <1W

Camera dimensions:

  • base 32 x 86 mm
  • hole pitch for screws 70 mm


Note: The camera is designed for aftermarket radio units with RCA AV input. Connecting to an original radio unit may require to add the video adapter for parking camera!

Parameters

Brand of the car Ford
Signal analog
Plugs CVBS-RCA
Model of the car C-max
Use OEM
For cars passanger
Weight 0.272 kg
