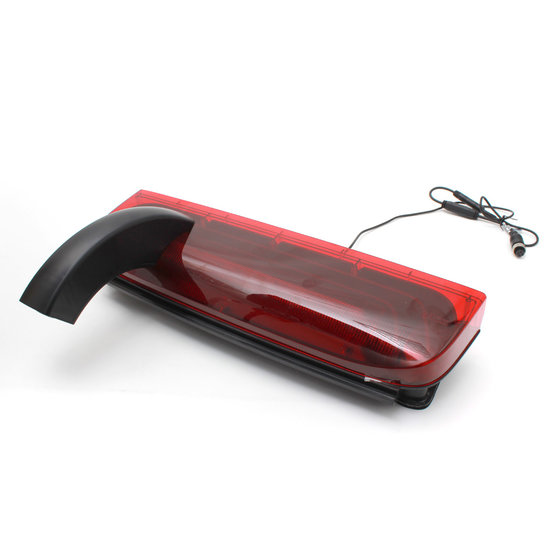

BC FORD-09 Rearview camera in brake light

| BC FORD-09

OEM Parking camera integrated in central brake light installed above rear wing doors for Ford Transit Connect, Tourneo Connect (13-) vans. The camera is homologated.




OEM Parking camera integrated in central brake light installed above rear wing doors for Ford Transit Connect, Tourneo Connect (13-) vans. The camera is homologated.

Suitable for cars:

  • FORD Transit Connect (9/13-)
  • FORD Tourneo Connect (11/13-)

Specification:

  • sensor: PC3089 1/3"
  • option to enable/disable to display the guide lines
  • electronic Aperture: 1/60 1/10000 sec.
  • minimum lighting: 0.1Lux
  • signal-to-noise ratio:> 48dB
  • TV system: NTSC (supported by each monitor/head unit)
  • number of TV lines: 600
  • effective pixels 668 × 576 pixels
  • weather protection: IP67
  • view angle: 170°
  • camera body: durable plastics "private housing"
  • image display: mirror
  • operating temperature from -30 °C to + 70 °C
  • AGC, BLC, white balance: automatically
  • signal cable: 10 m long with CINCH / RCA connector
  • video output: 1.0V / 75 Ohm
  • power cord length: 1m
  • power supply: 12V DC
  • consumption: <1W
  • Homologated

NOTE: The camera is designed for aftermarket head units with RCA camera input. Using with oem radio is likely to require the specific video adapter for parking camera!

Parameters

Brand of the car Ford
Model of the car Transit Connect, Tourneo Connect
Use OEM
Signal analog
Plugs CVBS-RCA, M12
For cars commercial
Weight 1.55 kg
