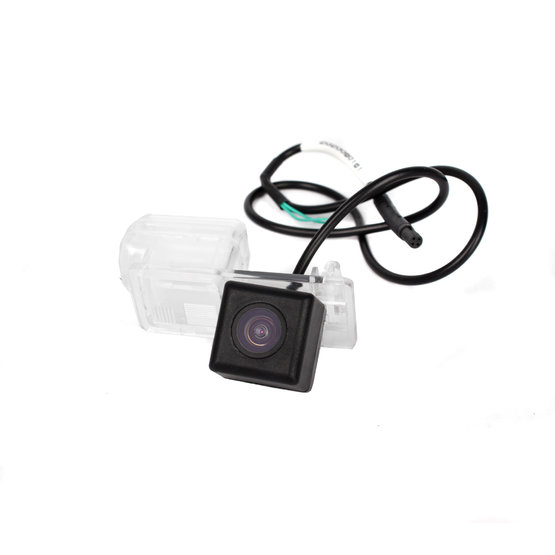

BC FORD-11 Rearview camera Ford Mondeo

| BC FORD-11

OEM colour parking camera to install into the rear licence plate light body. There is a special place in the camera body assigned for the light bulb replaced from the original lamp. For Ford Mondeo cars.

Show price
BC FORD-11 Rearview camera Ford Mondeo

OEM colour parking camera to install into the rear licence plate light body. There is a special place in the camera body assigned for the light bulb replaced from the original lamp. For Ford Mondeo cars.

For cars:

  • Ford Mondeo (13-)

Technical parameters:

  • sensing sensor: CMOS 1/3"
  • option to enable/disable to display the guide lines
  • electronic shutter: 1/60 1/10000 sec.
  • minimum lighting: 0.05Lux
  • signal-to-noise ratio:> 48dB
  • TV system: NTSC
  • number of TV lines: 700 TVL
  • weather protection: IP67
  • horizontal scanning angle: 120°
  • image display: mirror image
  • white balance: automatic
  • working temperature from -30 °C to + 70 °C
  • AGC, BLC, white balance: automatic
  • signal cable: length 8 m (CINCH / RCA connector)
  • double shielding of the signal cable
  • power cord: 30cm
  • video output: 1.0V / 75 Ohm
  • power supply: 12V DC
  • consumption: <1W

Camera dimensions:

  • base 24 x 59 mm
  • pitch 54 mm

Note: The camera is designed for aftermarket radio units with RCA AV input. Connecting to an original radio unit may require to add the video adapter for parking camera!

Parameters

Use OEM
For cars passanger
Signal analog
Brand of the car Ford
Plugs CVBS-RCA
Model of the car Mondeo
Weight 0.271 kg
