BC HON-05 Rearview camera Honda

| BC HON-05

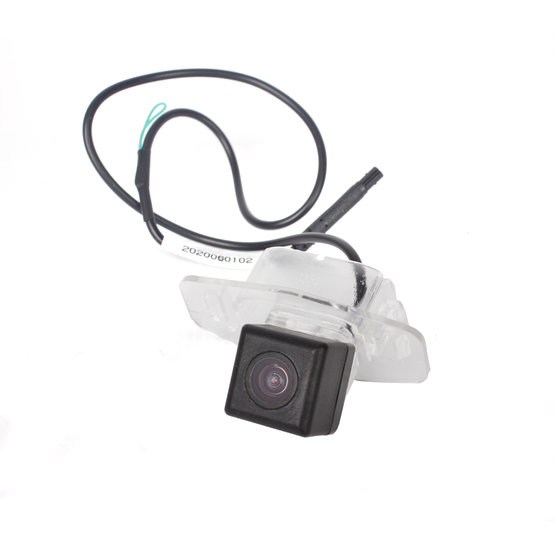

OEM colour parking camera to install into the rear licence plate light body.

Discontinued

OEM colour parking camera to install into the rear licence plate light body.

Suitable for the car models:

  • HONDA Civic VII. (2006-2011) Sedan
  • HONDA Accord Combi (2008->)

Technical parameters:

  • sensor: PC3089 1/3"
  • option to enable/disable to display the guide lines
  • electronic Aperture: 1/60 1/10000 sec.
  • minimum lighting: 0.1Lux
  • signal-to-noise ratio:> 48dB
  • TV system: NTSC (supported by each monitor/head unit)
  • number of TV lines: 600
  • effective pixels 668 × 576 pixels
  • weather protection: IP67
  • view angle: 170°
  • camera body: durable plastics "private housing"
  • image display: mirror
  • operating temperature from -30 °C to + 70 °C
  • AGC, BLC, white balance: automatically
  • signal cable: 6.2 m long with CINCH / RCA connector
  • video output: 1.0V / 75 Ohm
  • power cord length: 1m
  • power supply: 12V DC
  • consumption: <1W

Camera dimensions:

  • base 35 x 69 mm
  • pitch between attachment points 58 mm


Note: The camera is designed for aftermarket radio units with RCA AV input. Connecting to an original radio unit may require to add the video adapter for parking camera!

Parameters

Model of the car Accord, Civic
Use OEM
For cars passanger
Brand of the car Honda
Signal analog
Plugs CVBS-RCA
Weight 0.336 kg
