BC HYU-07 Rearview camera Hyundai Kia

| BC HYU-07

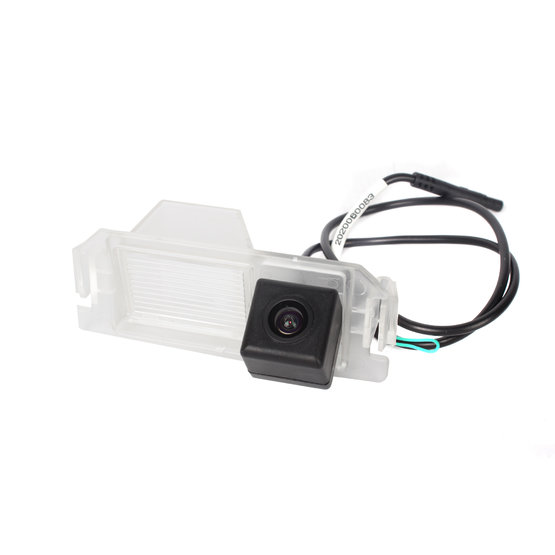

OEM colour parking camera to install into the rear licence plate light body. There is a special place in the camera body assigned for the light bulb replaced from the original lamp.

Show price
BC HYU-07 Rearview camera Hyundai Kia

OEM colour parking camera to install into the rear licence plate light body. There is a special place in the camera body assigned for the light bulb replaced from the original lamp.

Suitable for the car models:

  • HYUNDAI i10 II. (2014->)
  • HYUNDAI i20 I. [PB] (8/2008-2015)
  • HYUNDAI i20 II. (2015->)
  • HYUNDAI i30 I. (9/2007-2/2012)
  • HYUNDAI Veloster (2011->)
  • HYUNDAI Genesis Coupe
  • KIA Soul I. [AM] Facelift (11/2011->)
  • KIA Rio III. (9/2011-2016)
  • KIA Rio IV. (2017-)

Technical parameters:

  • sensor: PC3089 1/3"
  • option to enable/disable to display the guide lines
  • electronic Aperture: 1/60 1/10000 sec.
  • minimum lighting: 0.1Lux
  • signal-to-noise ratio:> 48dB
  • TV system: NTSC (supported by each monitor/head unit)
  • number of TV lines: 600
  • effective pixels 668 × 576 pixels
  • weather protection: IP67
  • view angle: 170°
  • camera body: durable plastics "private housing"
  • image display: mirror
  • operating temperature from -30 °C to + 70 °C
  • AGC, BLC, white balance: automatically
  • signal cable: 6.2 m long with CINCH / RCA connector
  • video output: 1.0V / 75 Ohm
  • power cord length: 1m
  • power supply: 12V DC
  • consumption: <1W

Camera dimensions:

  • base 37,5 x 97 mm


Note: The camera is designed for aftermarket radio units with RCA AV input. Connecting to an original radio unit may require to add the video adapter for parking camera!

Parameters

Model of the car Genesis, Soul I., Rio III., Rio IV., i10 I., i20 I., i20 II., i30 I., Veloster
Brand of the car Hyundai, Kia
Use OEM
Signal analog
Plugs CVBS-RCA
For cars passanger
Weight 0.335 kg
