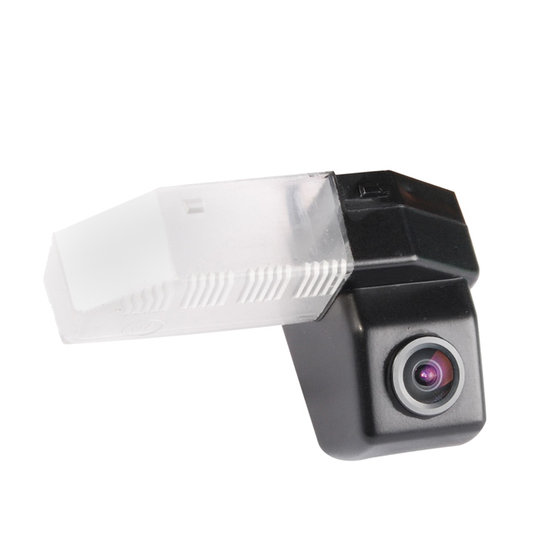

BC MAZ-06 Rearview camera Mazda 6 II

| BC MAZ-06

OEM colour parking camera to install into the rear licence plate light body. New LED light, as a replacement of the original light, is included.


Discontinued

OEM colour parking camera to install into the rear licence plate light body. New LED light, as a replacement of the original light, is included.

Suitable for the car models:

  • MAZDA 6 II. [GH] (2/2008-12/2012)

Technical parameters:

  • sensor: PC3089 1/3"
  • option to enable/disable to display the guide lines
  • electronic Aperture: 1/60 1/10000 sec.
  • minimum lighting: 0.1Lux
  • signal-to-noise ratio:> 48dB
  • TV system: NTSC (supported by each monitor/head unit)
  • number of TV lines: 600
  • effective pixels 668 × 576 pixels
  • weather protection: IP67
  • view angle: 170°
  • camera body: durable plastics "private housing"
  • image display: mirror
  • operating temperature from -30 °C to + 70 °C
  • AGC, BLC, white balance: automatically
  • signal cable: 6.2 m long with CINCH / RCA connector
  • video output: 1.0V / 75 Ohm
  • power cord length: 1m
  • power supply: 12V DC
  • consumption: <1W

Camera dimensions

  • base 26 x 75 mm

Note: The camera is designed for aftermarket radio units with RCA AV input. Connecting to an original radio unit may require to add the video adapter for parking camera!

Parameters

For cars passanger
Model of the car 6 II.
Brand of the car Mazda
Plugs CVBS-RCA
Use OEM
Signal analog
Weight 0.357 kg
