BC MCD-04 Camera to OEM opening S GLK

| BC MCD-04

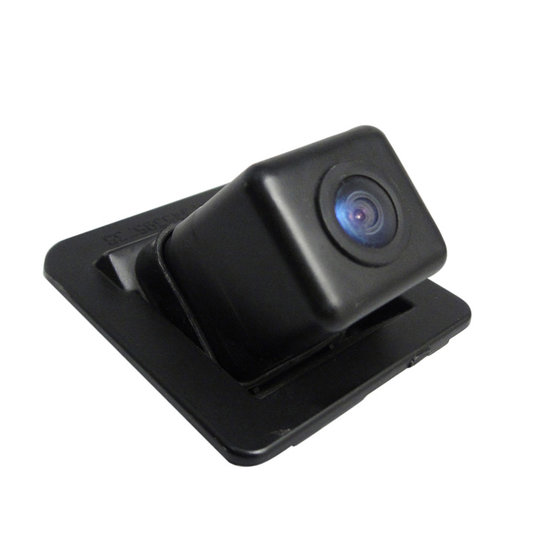

OEM colour parking camera to install into the original hole in the space of the rear plate number light.


Discontinued

OEM colour parking camera to install into the original hole in the space of the rear plate number light (the vehicle must be equipped with an original camera opening).

Suitable for the car models:

  • MERCEDES S-class [W164]
  • MERCEDES GLK [X204] (6/2008->)

Technical Parameters:

  • sensor: PC3089 1/3"
  • option to enable/disable to display the guide lines
  • electronic Aperture: 1/60 1/10000 sec.
  • minimum lighting: 0.1Lux
  • signal-to-noise ratio:> 48dB
  • TV system: NTSC (supported by each monitor/head unit)
  • number of TV lines: 600
  • effective pixels 668 × 576 pixels
  • weather protection: IP67
  • view angle: 170°
  • camera body: durable plastics "private housing"
  • image display: mirror
  • operating temperature from -30 °C to + 70 °C
  • AGC, BLC, white balance: automatically
  • signal cable: 6.2 m long with CINCH / RCA connector
  • video output: 1.0V / 75 Ohm
  • power cord length: 1m
  • power supply: 12V DC
  • consumption: <1W

Camera dimensions:

  • base 48 x 54 mm
  • pitch between attachment points 42 mm

Note: The camera is designed for aftermarket radio units with RCA AV input. Connecting to an original radio unit may require to add the video adapter for parking camera!

Parameters

Use OEM
For cars passanger
Model of the car S-Class, GLK
Brand of the car Mercedes
Signal analog
Plugs CVBS-RCA
Weight 0.335 kg
