BC MCD-05 Rearview camera in handle Mercedes

| BC MCD-05

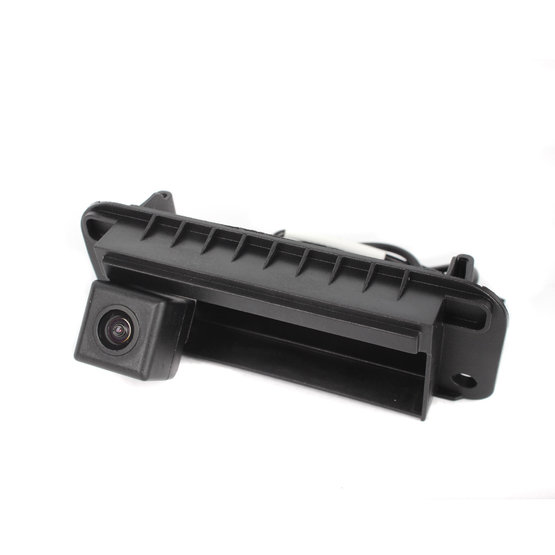

OEM colour parking camera for installation into the handle of the 5th door.

OEM colour parking camera for installation into the handle of the 5th door.

Suitable for the car models:

  • MERCEDES C-class [W204] (2007-2009)
  • MERCEDES E-class [W212] (2009->)

Technical Parameters:

  • sensor: PC3089 1/3"
  • option to enable/disable to display the guide lines
  • electronic Aperture: 1/60 1/10000 sec.
  • minimum lighting: 0.1Lux
  • signal-to-noise ratio:> 48dB
  • TV system: NTSC (supported by each monitor/head unit)
  • number of TV lines: 600
  • effective pixels 668 × 576 pixels
  • weather protection: IP67
  • view angle: 170°
  • camera body: durable plastics "private housing"
  • image display: mirror
  • operating temperature from -30 °C to + 70 °C
  • AGC, BLC, white balance: automatically
  • signal cable: 6.2 m long with CINCH / RCA connector
  • video output: 1.0V / 75 Ohm
  • power cord length: 1m
  • power supply: 12V DC
  • consumption: <1W

Camera dimensions:

  • base 53 x 126 mm
  • hole pitch for screws 110 mm

Note: The camera is designed for aftermarket radio units with RCA AV input. Connecting to an original radio unit may require to add the video adapter for parking camera!

Parameters

Use OEM
For cars passanger
Signal analog
Plugs CVBS-RCA
Model of the car E-Class, C-Class
Brand of the car Mercedes
Weight 0.334 kg
