BC SCUDO Rearview camera in brake light

| BC SCUDO

OEM Rear view camera for Citroen Jumpy, Peugeot Expert, Fiat Scudo (07-16) with rear wing doors.

Show price

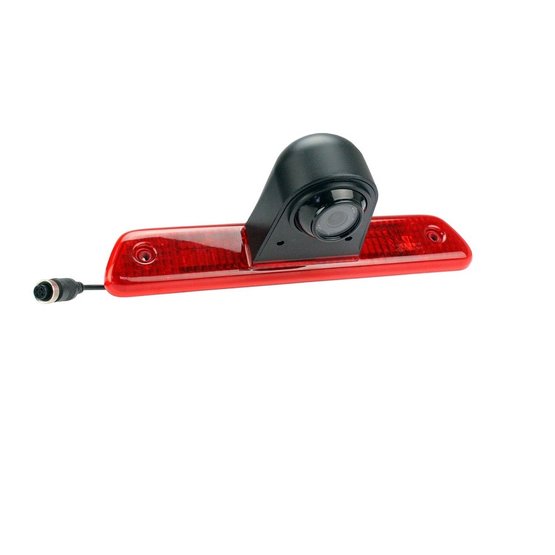

BC SCUDO Rearview camera in brake light

OEM Rear view camera for Citroen Jumpy, Peugeot Expert, Fiat Scudo (07-16) with rear wing doors.

Designed for cars:

  • CITROEN Jumpy (07-16)
  • CITROEN Dispatch (07-16)
  • FIAT Scudo (07-16)
  • PEUGEOT Expert (07-16)
  • TOYOTA Proace (13-16)

Technical parameters:

  • sensor: PC3089 1/3"
  • Electronic Aperture: 1/50 1/10000 sec.
  • Minimum lighting: 0.1Lux
  • signal-to-noise ratio:> 48dB
  • TV system: NTSC
  • number of TV lines: 420
  • weather protection: IP68
  • sensing angle: 170°
  • camera body: durable plastics "private housing"
  • image display: mirror
  • white balance: automatically
  • operating temperature from -30 °C to + 70 °C
  • AGC, BLC, white balance: automatically
  • Signal cable: 6.2m long with CINCH / RCA connector
  • video output: 1.0V / 75 Ohm
  • power cord length: 1m
  • power supply: 12V DC
  • consumption: <1W

Note: The camera is designed for aftermarket radio units with RCA AV input. Connecting to an original radio unit may require to add the video adapter for parking camera!

Parameters

Brand of the car Toyota, Fiat, Citroen, Peugeot
Model of the car Proace, Jumpy, Expert, Scudo
Signal analog
Use OEM
Plugs CVBS-RCA, M12
For cars commercial
Weight 0.913 kg
