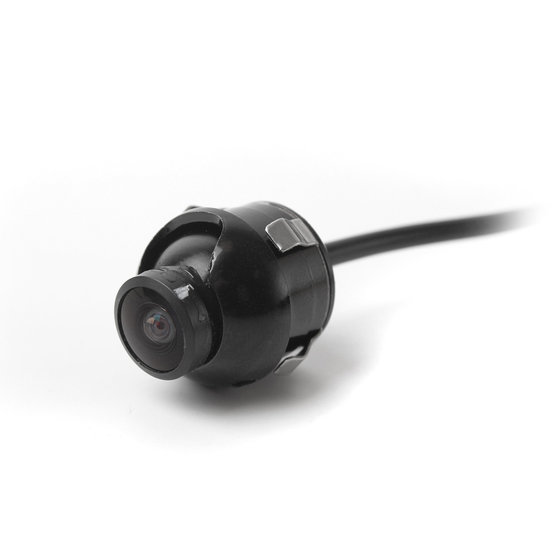

BC SPHERE Camera mini analog RCA

| BC SPHERE

Rear view camera universal, mini size, option to set as front/rear camera, to switch the guide lines on/off, 140° view angle, installation in the licence plate light area, or within the side mirror. The angle of inclination is adjustable in the 45° range.

Show price
BC SPHERE Camera mini analog RCA

Rear view camera universal, option to set as front/rear camera, to switch the guide lines on/off, 140° view angle, installation in the licence plate light area, or within the side mirror. The angle of inclination is adjustable in the 45° range.

Parameters:

  • CMOS 1/4"
  • lens diameter 6mm
  • Electronic Aperture: 1/50 1/10000 sec.
  • Minimum lighting: 0.1Lux
  • signal-to-noise ratio:> 48dB
  • TV system: NTSC
  • TV lines: 420
  • IP protection: IP68
  • sensing angle: 140°
  • video output: 1.0V / 75Ohm
  • white balance: automatically
  • operating temperature from -30 °C to + 70 °C
  • signal cable length 7m terminated CINCH connectors
  • power cable: 1m
  • power supply: 12V DC
  • consumption: <1W
  • dimensions: diameter 20mm, built-in depth 10mm

Note: The camera is intended for non-original (aftermarket) head units with RCA AV input. Use with the original head unit would require the video adapter to be connected to the parking camera!

- WHITE LOOP - LEFT / RIGHT ORIENTATION    LOOP CUT = DIRECT IMAGE (for forward facing)
- GREEN LOOP - GUIDE LINES DISPLAY            LOOP CUT = LINES OFF

loop cut/connect - the change will take effect when the power is turned off and on again

Parameters

Use UNI
For cars passanger
Signal analog
Plugs CVBS-RCA
Weight 0.213 kg
