Discontinued

BC SUB-01 Rearview camera Subaru

| BC SUB-01

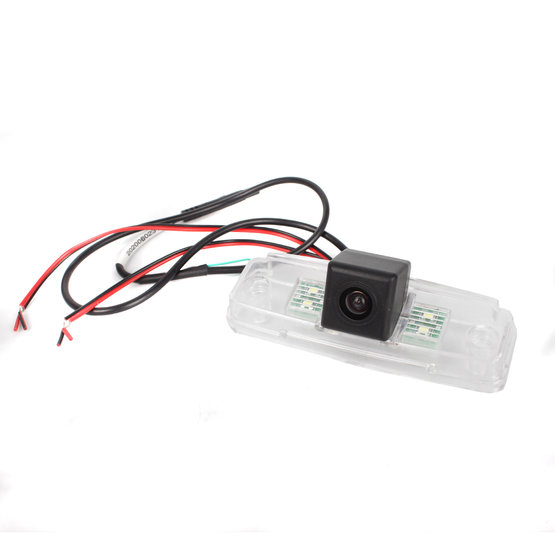

OEM colour parking camera to install into the rear licence plate light body. New LED light, as a replacement of the original light, is included.


Discontinued

OEM colour parking camera to install into the rear licence plate light body. New LED light, as a replacement of the original light, is included.

Suitable for the car models:

  • SUBARU Forester III. [SH] (2008-2013)
  • SUBARU Impreza
  • SUBARU Legacy Combi (2010->)
  • SUBARU Outback (2010->)

Technical Parameters:

  • sensor: PC3089 1/3"
  • option to enable/disable to display the guide lines
  • electronic Aperture: 1/60 1/10000 sec.
  • minimum lighting: 0.1Lux
  • signal-to-noise ratio:> 48dB
  • TV system: NTSC (supported by each monitor/head unit)
  • number of TV lines: 600
  • effective pixels 668 × 576 pixels
  • weather protection: IP67
  • view angle: 170°
  • camera body: durable plastics "private housing"
  • image display: mirror
  • operating temperature from -30 °C to + 70 °C
  • AGC, BLC, white balance: automatically
  • signal cable: 6.2 m long with CINCH / RCA connector
  • video output: 1.0V / 75 Ohm
  • power cord length: 1m
  • power supply: 12V DC
  • consumption: <1W

Camera dimensions:

  • base 29,5 x 100,8 mm
  • hole pitch for screws 79 mm

Note: The camera is designed for aftermarket radio units with RCA AV input. Connecting to an original radio unit may require to add the video adapter for parking camera!

Parameters

Brand of the car Subaru
Model of the car Forester III., Impreza, Legacy, Outback IV.
Use OEM
Signal analog
Plugs CVBS-RCA
For cars passanger
Weight 0.364 kg
