Discontinued

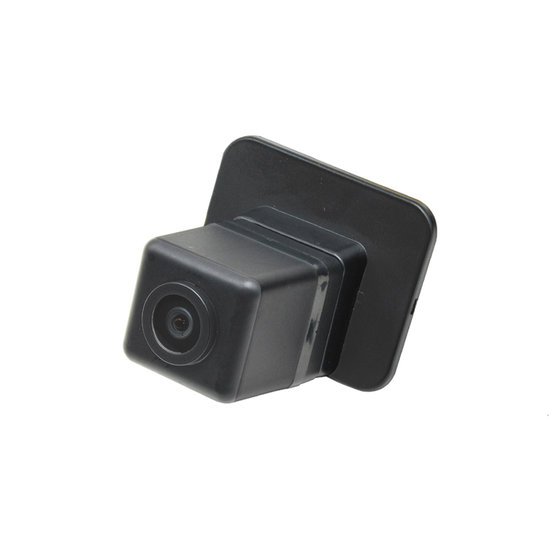

BC SUB-03 Camera to OEM opening Forester

| BC SUB-03

OEM parking camera for installation to the original site parking camera into a space above the license plate.


Discontinued

OEM parking camera for installation to the original site parking camera into a space above the license plate.

Suitable for the car models:

  • SUBARU XV [G4] (2011->)
  • SUBARU Forester III. (SH) (2011->)*
  • SUBARU Forester IV. (2013->)

* Vehicles with preparation for OEM camera - the plug to the left of light to illuminate the license plate

Technical Parameters:

  • sensor: PC3089 1/3"
  • option to enable/disable to display the guide lines
  • electronic Aperture: 1/60 1/10000 sec.
  • minimum lighting: 0.1Lux
  • signal-to-noise ratio:> 48dB
  • TV system: NTSC (supported by each monitor/head unit)
  • number of TV lines: 600
  • effective pixels 668 × 576 pixels
  • weather protection: IP67
  • view angle: 170°
  • camera body: durable plastics "private housing"
  • image display: mirror
  • operating temperature from -30 °C to + 70 °C
  • AGC, BLC, white balance: automatically
  • signal cable: 6.2 m long with CINCH / RCA connector
  • video output: 1.0V / 75 Ohm
  • power cord length: 1m
  • power supply: 12V DC
  • consumption: <1W

Camera dimensions:

  • base 36 x 45 mm
  • pitch between attachment points 28 mm

Note: The camera is designed for aftermarket radio units with RCA AV input. Connecting to an original radio unit may require to add the video adapter for parking camera!

Parameters

Model of the car Forester IV., XV, Forester III.
Brand of the car Subaru
Signal analog
Use OEM
Plugs CVBS-RCA
For cars passanger
Weight 0.323 kg
