BC SUZ-12 Rearview camera Swift S-Cross

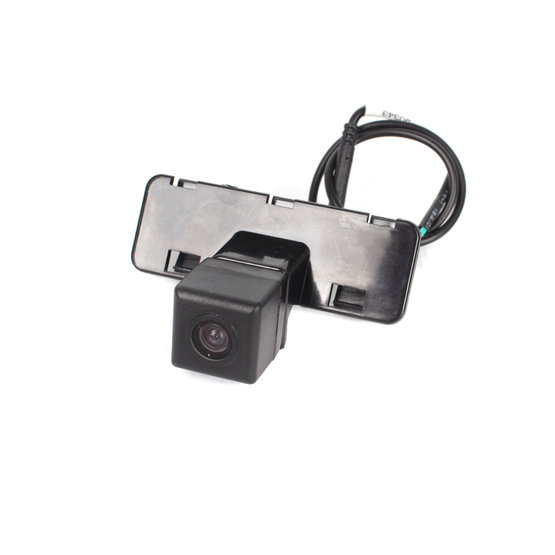

OEM color parking camera for installation into the original opening for the parking camera. For Suzuki Swift, Grand Vitara, SX4 S-Cross cars.
OEM color parking camera for installation into the original opening for the parking camera. For Suzuki Swift, Grand Vitara, SX4 S-Cross cars.
For cars:
- Suzuki Swift III. (10-)
- Grand Vitara II (05-)
- SX4 S-Cross
Technical parameters:
- sensing sensor: CMOS 1/3"
- option to enable/disable to display the guide lines
- electronic shutter: 1/60 1/10000 sec.
- minimum lighting: 0.05Lux
- signal-to-noise ratio:> 48dB
- TV system: NTSC
- number of TV lines: 700 TVL
- weather protection: IP67
- horizontal scanning angle: 120°
- image display: mirror image
- white balance: automatic
- working temperature from -30 °C to + 70 °C
- AGC, BLC, white balance: automatic
- signal cable: length 8 m (CINCH / RCA connector)
- double shielding of the signal cable
- power cord: 30cm
- video output: 1.0V / 75 Ohm
- power supply: 12V DC
- consumption: <1W
Camera dimensions:
- podstava 83 x 29 mm
Note: The camera is designed for aftermarket radio units with RCA AV input. Connecting to an original radio unit may require to add the video adapter for parking camera!
Parameters
Brand of the car | Suzuki |
---|---|
Model of the car | Swift IV., Grand Vitara, S-Cross |
Signal | analog |
Plugs | CVBS-RCA |
Use | OEM |
For cars | passanger |
Weight | 0.269 kg |
