Discontinued

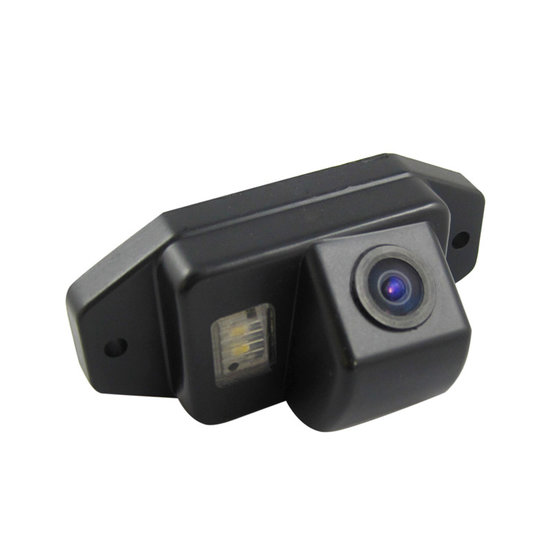

BC TOY-01 Rearview camera Land Cruiser

| BC TOY-01

OEM colour parking camera to install into the rear licence plate light body. New LED light, as a replacement of the original light, is included.


Discontinued

OEM colour parking camera to install into the rear licence plate light body. New LED light, as a replacement of the original light, is included.

Suitable for the car models:

  • TOYOTA Land Cruiser 100 [J10] (1/1998->)
  • TOYOTA Land Cruiser 120 [J12] (9/2002->)
  • TOYOTA Land Cruiser 200 [J20] (8/2007->)

for cars with spare wheel mounted on the 5-th door

Technical parameters:

  • sensor: PC3089 1/3"
  • option to enable/disable to display the guide lines
  • electronic Aperture: 1/60 1/10000 sec.
  • minimum lighting: 0.1Lux
  • signal-to-noise ratio:> 48dB
  • TV system: NTSC (supported by each monitor/head unit)
  • number of TV lines: 600
  • effective pixels 668 × 576 pixels
  • weather protection: IP67
  • view angle: 170°
  • camera body: durable plastics "private housing"
  • image display: mirror
  • operating temperature from -30 °C to + 70 °C
  • AGC, BLC, white balance: automatically
  • signal cable: 6.2 m long with CINCH / RCA connector
  • video output: 1.0V / 75 Ohm
  • power cord length: 1m
  • power supply: 12V DC
  • consumption: <1W

Camera dimensions:

  • base 37 x 78 mm
  • hole pitch for screws 67,5  mm

Note: The camera is designed for aftermarket radio units with RCA AV input. Connecting to an original radio unit may require to add the video adapter for parking camera!

Parameters

Use OEM
For cars passanger
Model of the car Land Cruiser 100, Land Cruiser 120, Land Cruiser 200
Brand of the car Toyota
Signal analog
Plugs CVBS-RCA
Weight 0.341 kg
