Discontinued

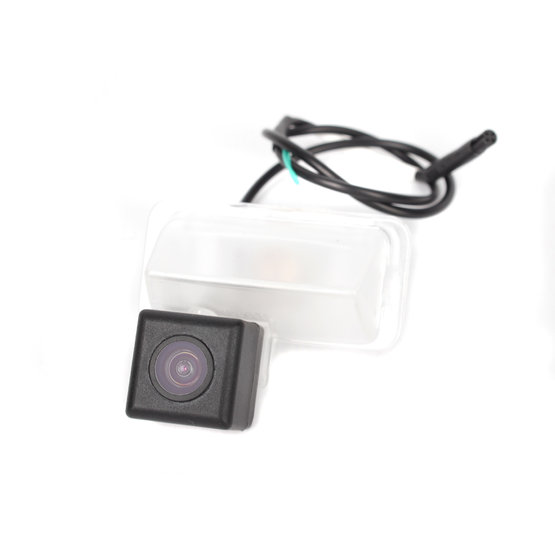

BC TOY-12 Rearview camera Toyota Corolla

| BC TOY-12

OEM colour parking camera to install into the rear licence plate light body. There is a special place in the camera body assigned for the light bulb replaced from the original lamp. For Toyota Corolla cars.


Discontinued

OEM colour parking camera to install into the rear licence plate light body. There is a special place in the camera body assigned for the light bulb replaced from the original lamp. For Toyota Corolla cars.

For cars:

  • Toyota Corrola (14-)

Technical parameters:

  • sensing sensor: CMOS 1/3"
  • option to enable/disable to display the guide lines
  • electronic shutter: 1/60 1/10000 sec.
  • minimum lighting: 0.05Lux
  • signal-to-noise ratio:> 48dB
  • TV system: NTSC
  • number of TV lines: 700 TVL
  • weather protection: IP67
  • horizontal scanning angle: 120°
  • image display: mirror image
  • white balance: automatic
  • working temperature from -30 °C to + 70 °C
  • AGC, BLC, white balance: automatic
  • signal cable: length 8 m (CINCH / RCA connector)
  • double shielding of the signal cable
  • power cord: 30cm
  • video output: 1.0V / 75 Ohm
  • power supply: 12V DC
  • consumption: <1W

Camera dimensions:

  • base 31 x 62 mm

Note: The camera is designed for aftermarket radio units with RCA AV input. Connecting to an original radio unit may require to add the video adapter for parking camera!

Parameters

Signal analog
Brand of the car Toyota
Plugs CVBS-RCA
Use OEM
For cars passanger
Model of the car Corolla
Weight 0.282 kg
