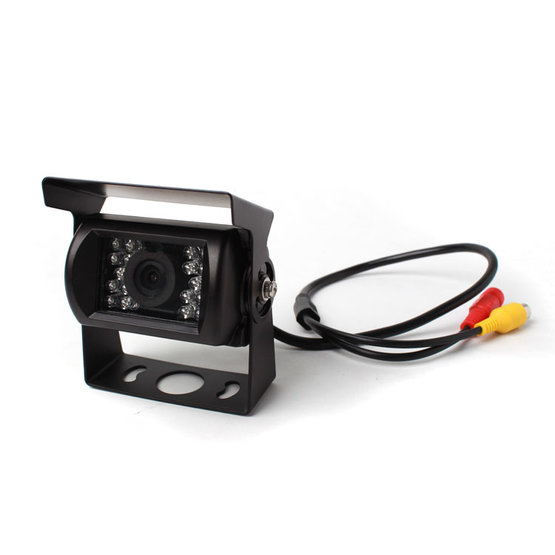

BC UNI-06 Camera analog RCA auto IR 12V-24V

| BC UNI-06

Rearview camera universal 12V / 24V, without guide lines, view angle of 110° with automatic IR illumination, metal body.


Rearview camera universal 12V / 24V, without guide lines, view angle of 110° with automatic IR illumination, metal body.

Technical parameters:

  • large 1/3 "Sensor
  • illumination IR LED (18pcs)
  • electronic shutter: 1/50 1/10000 sec.
  • minimum illumination: 0,05Lux
  • S/N Ratio:> 48 db
  • TV system: NTSC
  • TV lines: 480
  • weather protection: IP66
  • viewing angle: 110°
  • video Output: 1.0V / 75 ohm
  • white balance: Auto
  • operating temperature from -30 °C to + 70 °C
  • RCA connectors
  • power cable length: 1 m
  • power supply 12V / 24V
  • current consumption: 290 mA (+/- 5%)
  • mirror image
  • the camera body dimensions: 75x43x57 mm

Parameters

For cars commercial
Use UNI
Signal analog
Plugs CVBS-RCA
Weight 0.302 kg
