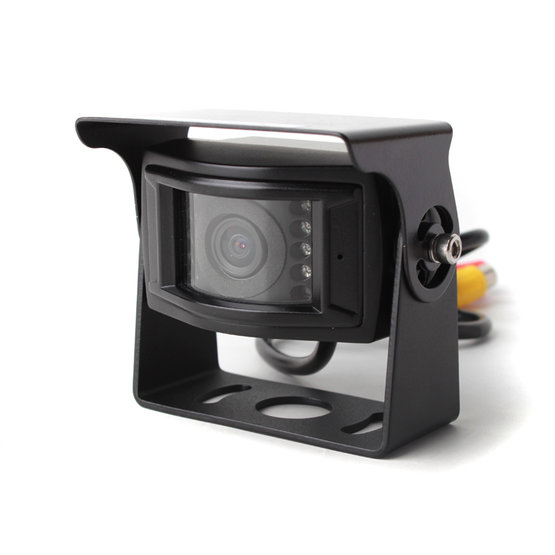

BC UNI-09 Camera analog RCA auto IR 12-24V

| BC UNI-09

Rearview camera universal, 12V/24V, SONY CCD sensor, without guide lines, view angle of 150°, with automatic IR LEDs, metal body.

Show price
BC UNI-09 Camera analog RCA auto IR 12-24V

Rearview camera universal, 12V/24V, SONY CCD sensor, without guide lines, view angle of 150°, with automatic IR LEDs, metal body.

Technical parameters:

  • waterproof design: IP67
  • CCD Sony 1/3" Chip
  • electronic Aperture: 1/50 1/10000 sec.
  • minimum illumination: 0.01Lux
  • IR illumination of 10 LEDs
  • signal-to-noise ratio: > 48dB
  • TV system: NTSC (compatible with each display)
  • number of TV lines: 480
  • weather protection: IP67
  • sensing angle: 150°
  • video output: 1.0V / 75 Ohm
  • white balance: automatically
  • operating temperature from -30 °C to + 70 °C
  • signal cable length 7m terminated CINCH / RCA connectors
  • power cable length 1m
  • power supply: 12-24V DC
  • consumption: <1W
  • image switch: normal / mirror

Note: The camera is designed for aftermarket radio units with RCA AV input. Connecting to an original radio unit may require to add the video adapter for parking camera!

Parameters

Use UNI
For cars commercial
Signal analog
Plugs CVBS-RCA
Weight 0.541 kg
