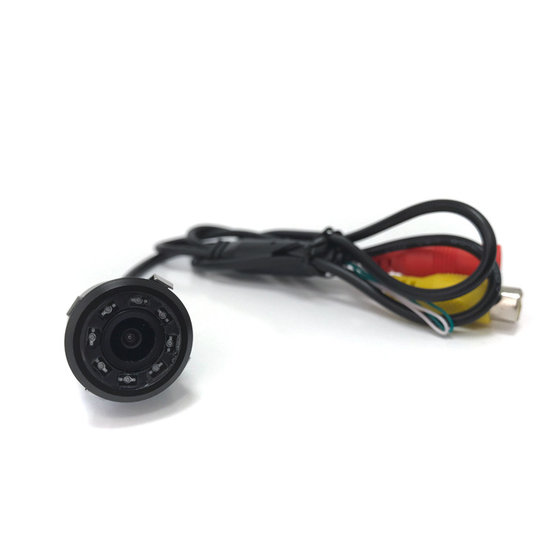

BC UNI-18.5 IR Camera analog RCA auto IR

| BC UNI-18.5 IR

Universal parking camera with automatic IR LED, option to turn on/off the guiding lines and mirror image, 170° angle view, 18,5mm in diameter.

Show price
BC UNI-18.5 IR Camera analog RCA auto IR

Universal parking camera with automatic IR LED, option to turn on/off the guiding lines and mirror image, 170° angle view, 18,5mm in diameter.

Technical parameters:

  • PC1030 1/4" sensor
  • Minimum illumination: 0Lux (with LEDs on)
  • TV system: NTSC
  • resolution: 420 TV lines
  • power supply 9V-12V
  • weather protection: IP67
  • Viewing angle: 170°
  • mirror image (option to turn on/off by installation)
  • guide lines (option to turn on/off by installation)
  • Video Output: RCA/CINCH 1.0V/75 ohm
  • working temperature range -20 °C to + 60 °C
  • camera body measures:
    • body diameter 18,5mm
    • outer ring diameter 20,5mm
    • embeded lenght 20mm
  • power cable length 1 m
  • signal cable length of 6m with RCA connectors
  • Drill tool 18,5 mm - in the package

Note: The camera is designed for aftermarket radio units with RCA AV input. Connecting to an original radio unit may require to add the video adapter for parking camera!

Parameters

Use UNI, OEM
Signal analog
Plugs CVBS-RCA
For cars passanger
Weight 0.177 kg
