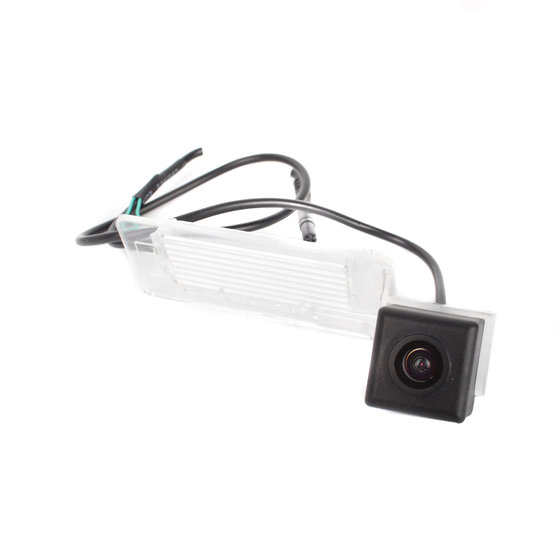

BC VW-11 Rearview camera Audi Škoda
|
BC VW-11
OEM colour parking camera to install into the rear licence plate light body. There is a special place in the camera body assigned for the original light bulb. For Audi A4, Škoda Octavia II. cars.
OEM colour parking camera to install into the rear licence plate light body. There is a special place in the camera body assigned for the original light bulb. For Audi A4, Škoda Octavia II. cars.
For cars:
- Audi A4L (2009- 2012)
- Audi TT (2009-2012)
- Audi A5 (2009- 2012)
- Audi Q5 (2009- 2012)
- Škoda Octavia II. (11-)
Technical parameters:
- sensing sensor: CMOS 1/3"
- option to enable/disable to display the guide lines
- electronic shutter: 1/60 1/10000 sec.
- minimum lighting: 0.05Lux
- signal-to-noise ratio:> 48dB
- TV system: NTSC
- number of TV lines: 700 TVL
- weather protection: IP67
- horizontal scanning angle: 120°
- image display: mirror image
- white balance: automatic
- working temperature from -30 °C to + 70 °C
- AGC, BLC, white balance: automatic
- signal cable: length 8 m (CINCH / RCA connector)
- double shielding of the signal cable
- power cord: 30cm
- video output: 1.0V / 75 Ohm
- power supply: 12V DC
- consumption: <1W
Camera dimensions:
- base 76 x 32 mm
- pitch 58 mm
Note: The camera is designed for aftermarket radio units with RCA AV input. Connecting to an original radio unit may require to add the video adapter for parking camera!
Parameters
| Use | OEM |
|---|---|
| For cars | passanger |
| Brand of the car | Audi, Škoda, Seat, VW |
| Model of the car | A4, A5, Altea XL, Leon, Passat, Beetle I., Golf, Jetta, Superb, Octavia, Rapid, Citigo, Yeti, Polo, Phaeton, Sharan II., Polo IV. |
| Signal | analog |
| Plugs | CVBS-RCA |
| Weight | 0.275 kg |
