BC VW-81 Rearview camera VW T4 Transporter

| BC VW-81

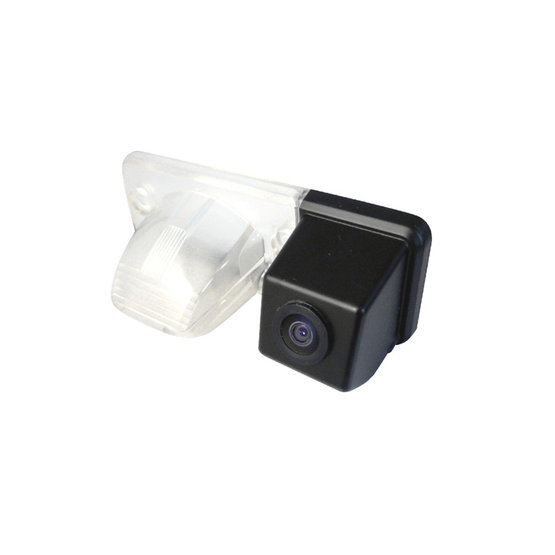

OEM colour parking camera to install into the place of rear licence plate, for VW Transporter, Multivan T4 cars. There is a place in the camera body assigned for the original light bulb base.


Discontinued

OEM colour parking camera to install into the place of rear licence plate, for VW Transporter, Multivan T4 cars. There is a place in the camera body assigned for the original light bulb base.

Suitable for cars:

  • VW Transporter T4 (9/1990-4/2003)
  • VW Multivan T4 (1990-2003)

Specification

  • sensor: PC3089 1/3"
  • option to enable/disable to display the guide lines
  • electronic Aperture: 1/60 1/10000 sec.
  • minimum lighting: 0.1Lux
  • signal-to-noise ratio:> 48dB
  • TV system: NTSC (supported by each monitor/head unit)
  • number of TV lines: 600
  • effective pixels 668 × 576 pixels
  • weather protection: IP67
  • view angle: 170°
  • camera body: durable plastics "private housing"
  • image display: mirror
  • operating temperature from -30 °C to + 70 °C
  • AGC, BLC, white balance: automatically
  • signal cable: 6.2 m long with CINCH / RCA connector
  • video output: 1.0V / 75 Ohm
  • power cord length: 1m
  • power supply: 12V DC
  • consumption: <1W

Camera dimensions:

  • base 45 x 98 mm
  • hole pitch for screws 55 mm

NOTE: The camera is designed for aftermarket head units with RCA camera input. Using with oem radio is likely to require the specific video adapter for parking camera!



Parameters

Use OEM
For cars commercial
Model of the car Transporter
Signal analog
Brand of the car VW
Plugs CVBS-RCA
Weight 0.424 kg
