BC VW-GOLF7 Rearview camera auto flip

| BC VW-GOLF7

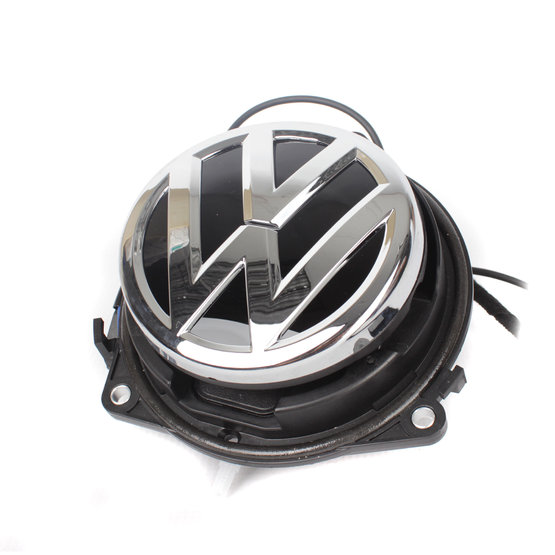

OEM color rear view camera integrated in the "VW" logo located on the 5-th door for VW Golf 7. After the reverse gear is shifted, the camera automatically pops up, original function of door opening by the logo is maintained.

Show price
BC VW-GOLF7 Rearview camera auto flip

OEM color rear view camera integrated in the "VW" logo located on the 5-th door. After the reverse gear is shifted, the camera automatically pops up, original function of door opening by the logo is maintained.

Suitable for cars:

  • VW Golf VII.

Specification:

  • sensor: PC3089 1/3"
  • option to enable/disable to display the guide lines
  • electronic Aperture: 1/60 1/10000 sec.
  • minimum lighting: 0.1Lux
  • signal-to-noise ratio:> 48dB
  • TV system: NTSC (supported by each monitor/head unit)
  • number of TV lines: 600
  • effective pixels 668 × 576 pixels
  • weather protection: IP67
  • view angle: 170°
  • camera body: durable plastics "private housing"
  • image display: mirror
  • operating temperature from -30 °C to + 70 °C
  • AGC, BLC, white balance: automatically
  • signal cable: 6.2 m long with CINCH / RCA connector
  • video output: 1.0V / 75 Ohm
  • power cord length: 1m
  • power supply: 12V DC
  • consumption: <1W

NOTE: The camera is designed for aftermarket head units with RCA camera input. Using with oem radio is likely to require the specific video adapter for parking camera!



Parameters

Signal analog
Plugs CVBS-RCA
Brand of the car VW
Use OEM
For cars passanger
Model of the car Golf VII.
Weight 1.162 kg
