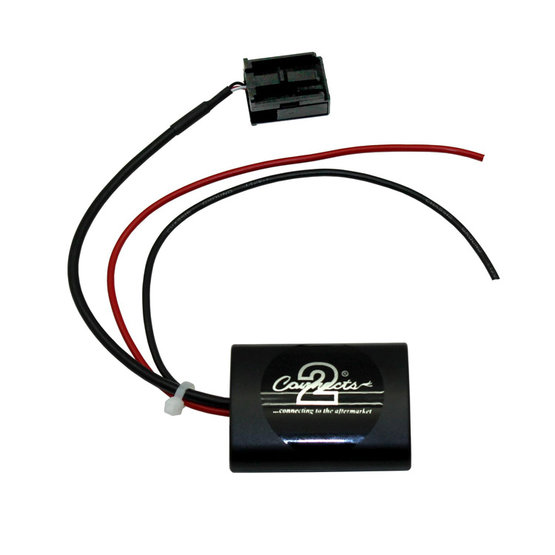

BT-A2DP OPEL Bluetooth Audio Adapter

CONNECTS2 | BT-A2DP OPEL

Bluetooth audio module for OPEL cars with oem radio CD30MP, allows wireless music streaming from your mobile phone to the original car radio.


Discontinued

Bluetooth audio adapter for Opel vehicles, allows wireless music streaming from your mobile phone to the original car radio.

Suitable for cars:

  • Opel Agila (2004-2009)
  • Opel Astra (04 / 04-2011 / 2010)
  • Opel Combo C (2006->)
  • Opel Corsa [D] (7 / 2006-2014)
  • Opel Meriva A (2004-2010)
  • OPEL Zafira (2005->)
  • Opel Signum (2004-2009)
  • Opel Tigra (2004-2009)
  • Opel Vectra C (2004-2009)
  • OPEL Antara (9 / 2006->)
  • OPEL Vivaro (2006-2010)

with oem radio installed CD30 MP3 and AUX input
The AUX input is necessary to activate the active AUX diagnostic tool
- Transfer music to a distance of five meters from the receiver
- Compatible with mobile phones, tablets, MP3 player, Bluetooth apod.s

Technical specifications:

  • Bluetooth version 3.0
  • Bluetooth protocol: HFPV1.5, A2DPV1.2, AVRCPV1.4 HSP1.2, GAVDP1.2 IOP
  • Current consumption: <25 mA
  • Power supply: 12V
  • Range: min.5
  • Sensitivity: -80dBm <0.1% BER
  • Frequency range: 2.4GHz-2.480GHz
  • Audio performance: SBC Decode
  • Audio SNR:> = 75 db

Note. There must be a choice in the radio menu, to choose AUX IN music source. For some radio you can enable this option via diagnostics. If OEM radio already contain Bluetooth, it is necessary to disabled it first.

Parameters

Brand of the car Opel
Model of the car Agila, Astra H, Signum, Zafira B, Combo C, Meriva A, Corsa D, Vectra C, Antara, Vivaro, Tigra
Function Bluetooth
Weight 0.04 kg
