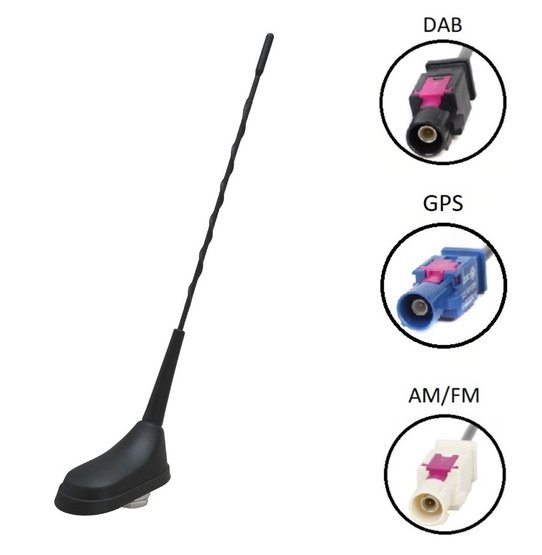

CAL-7677845 Calearo Antenna short AM FM DAB GNSS active
Antenna short AM FM DAB GNSS active.
| DAB | AM / FM | GNSS | |
| Connector | FAKRA Male Black | FAKRA Male White | FAKRA Male Blue |
| Cable Type | RG 174 | RG 174 | RG 174 |
| Cable Lenght | 260 mm | 225 mm | 270mm |
| Power Supply | 12 Volt Dedicated | 12 Volt Dedicated | 3 - 5 V Phantom |
| Consumption | 75 mA max | 75 mA max | 45 mA max |
| Impedance | 50 Ω | 50 Ω | 50 Ω |
| Gain | 0 dBi | -- | 30 dBi |
| VSWR | 3,5:1 | AM: 5:1 / FM: 7,5:1 | 1,5:1 |
| Rod Lenght | 300 mm |
||
| Rod Thread | M6 | ||
| Typ prútu | Antinoise | ||
| Protection Class | IP67 | ||
| Coachwork drilling | Square: 15 x 15 mm - Round: 19 mm | ||
| Base Angle | 60 degree | ||
Parameters
| Use | Universal |
|---|---|
| Location | rear |
| Manufacturer | CALEARO |
| Signal | AM/FM, GPS, DAB |
| Connector | w/o lead, FAKRA |
| Weight | 0.274 kg |
