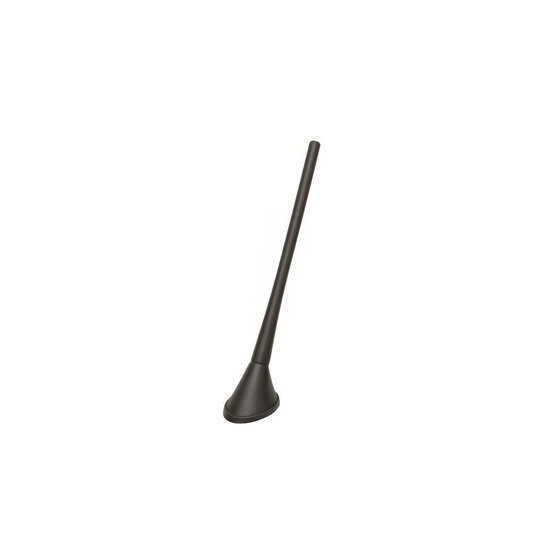

CAL-7677865 Calearo Antenna 16V short AM FM DAB ready

CALEARO | CAL-7677865

Antenna 16V short AM FM DAB ready.

	AM/FM
Connector	FAKRA Male White
Cable Type	RG 174
Cable Lenght	180 mm
Impedance	FM: 50 Ω
VSWR	FM: < 3:1
Protection Class	IP68
Rod Lenght	200 mm
Rod Thread	M5
Base Angle	60 degree
Coachwork drilling	Square: 15 x 15 mm - Round: 19 mm
Rod type	Smooth

Note: To enable DAB reception an Active or Passive Splitter is needed.

Suitable for cars:
Universal use
ALFA ROMEO 145 / ALFA ROMEO GT
AUDI A3 / AUDI A6 Avant (->01) / AUDI A4 Avant (->01)
BMW Mini (01->)
CITROEN Xsara / CITROEN C2 / CITROEN C3 / CITROEN C5 Break
DAEWOO Nubira Combi / DAEWOO Tacuma
FIAT Stilo / FIAT Idea / FIAT Panda II. (03-12)
LANCIA Libra Combi / LANCIA Y (04->)
LOTUS Elise / LOTUS Esprite
MAZDA 323 (99->) / MAZDA 3
MAZDA 6 I. [GG][GY](2002-1/2008) / MITSUBISHi Outlander
NISSAN Micra / NISSAN Almera / NISSAN Primera
OPEL Omega Caravan / OPEL Zafira / OPEL Vectra / OPEL Meriva / OPEL Speedster / OPEL Agila / OPEL Astra(98->) / OPEL Vectra Vagon / OPEL Corsa (03->) / OPEL Signum
PEUGEOT 307
RENAULT Clio (01->) / RENAULT Megane II / RENAULT Scenic II
SEAT Aroza / SEAT Ibiza (98->) / SEAT Cordoba (98->) / SEAT Toledo (98->) / SEAT Leon / SEAT Altea
ŠKODA Fabia I. / ŠKODA Fabia II. / ŠKODA Octavia I. / ŠKODA Octavia II. / ŠKODA Superb I. / ŠKODA Superb II. / ŠKODA Yeti / ŠKODA Felicia
TOYOTA RAV4 / TOYOTA Corolla (02->) / TOYOTA Yaris (03->) / TOYOTA Prius
VW Lupo / VW Polo / VW Golf III / VW Corrado / VW Golf IV / VW New Beetle / VW Bora / VW Passat (93->) / VW Passat (97->)
VOLVO V40

* - it may be necessary to use a cable reducer in some cars to connect to an OEM (original) antenna duct.

Parameters

Brand of the car	VW, Volvo, Mitsubishi, Citroen, Renault, Lancia, Lotus, Daewoo, Seat, Fiat, Mazda, Škoda, Alfa Romeo, Audi, Nissan, Opel, Toyota, Peugeot, Bmw
Model of the car	Cordoba, Toledo, A3, Leon, A4, Altea, Mini, Felicia, Xsara, Fabia I., C2, Fabia II., C3, Octavia I., C5, Octavia III., Nubira, Superb I., Tacuma, Superb II., Stilo, RAV4, Idea, Corolla, Outlander, Corrado, Beetle I., Scenic II., Megane II., Clio, V40, 307, Libra, 6 I., 3, 323, Arosa, Ibiza, Prius, Yaris, Golf IV, Golf III., Passat, Polo, Lupo, Bora, Panda II., Micra, Primera, Almera, Corsa, Meriva, Vectra, Speedster, Astra, Zafira, Agila, Signum
Use	Universal
Signal	DAB, AM/FM
Manufacturer	CALEARO
Connector	FAKRA, w/o lead
Location	rear
Weight	0.17 kg
