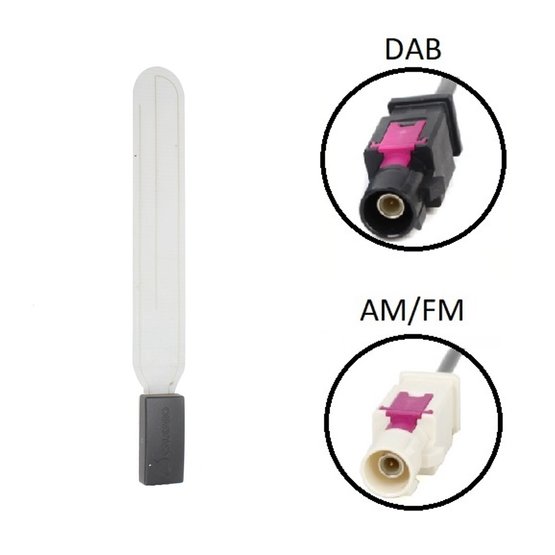

CAL-7677925 Calearo Glass antenna AM FM DAB active phantom
Glass antenna AM FM DAB active phantom.
| DAB | AM/FM | |
| Connector | FAKRA male BROWN | FAKRA Male White |
| Cable Type | RG 174 | RG 174 |
| Cable Lenght | 150 mm | 150 mm |
| Power Supply | 12V Phantom | 12V Phantom |
| Consumption | 90 mA max | 90 mA max |
| Impedance | 50 Ω | 50 Ω |
| Gain | 8 dBi | -- |
| VSWR | < 2:1 | FM: < 3:1 |
| Protection Class | IP41 | IP41 |
| Mounting | Internal adhesive on-glass | Internal adhesive on-glass |
Note: Amplifier must be powered from both DAB connector.
Parameters
| Use | Universal |
|---|---|
| Location | other |
| Signal | AM/FM, DAB |
| Connector | w/o lead, FAKRA |
| Manufacturer | CALEARO |
| Weight | 0.07 kg |
