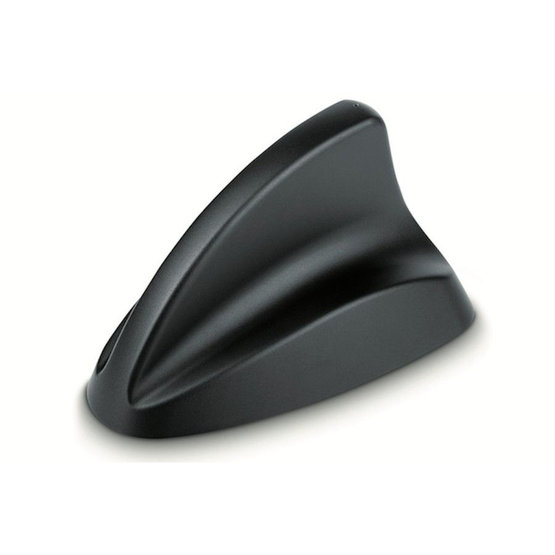

CAL-7677940 Calearo antenna Shark2 AM FM DAB GPS

CALEARO | CAL-7677940

Roof antenna, AM/FM/DAB+/GPS, Shark2

Discontinued

Roof antenna, AM/FM/DAB+/GPS, Shark2

Parameters

  • current consumption: 85mA max.
  • black colour
  • dimensions: 11.7 x 7.6 x 6.2cm (LxWxH)
  • body hole diameter: round 19mm / square 15x15mm

AM / FM

  • frequency range AM: 0.52 - 1.71Mhz / FM: 88-108Mhz
  • separate power supply: 12V
  • gain AM 28dB / FM 8dB
  • without antenna lead
  • antenna connector: RAKU2 female (cable 14cm)

DAB

  • frequency range: 174 - 240MHZ (band III)
  • separate power supply 12V
  • cable length: 5m / 50Ohms / impedance 101pF / m
  • connector: SMB female
  • gain: 16dB (band III)

GPS

  • GPS frequency range: 1575.42 (+/- 1.023) MHz
  • phantom power supply: 3-5V
  • gain:> 24dB
  • current consumption: max.24mA
  • VSWR: <2: 1
  • antenna lead length: 5m
  • connector for GPS device: SMB female

For cars

  • on the roof for cars or trucks
  • replacement for the original antenna
  • in case of request for another connector on the device side, it is possible to use a reduction

Parameters

Use Universal
Location rear
Connector SMB, RAKU2
Signal AM/FM, GPS, DAB
Manufacturer CALEARO
Weight 0.54 kg
