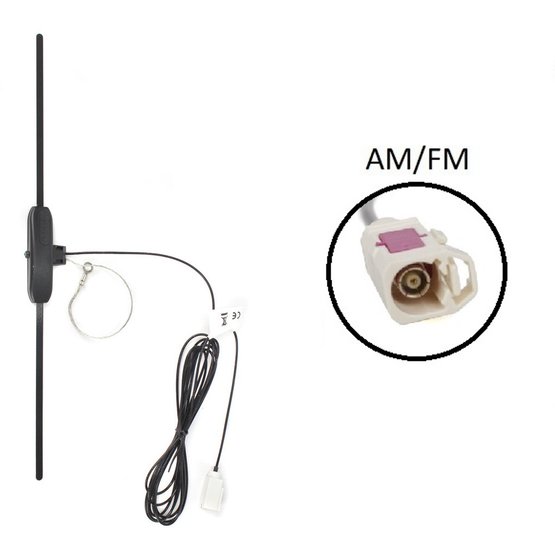

CAL-7697018 Calearo antenna AM FM adhesive
Antenna internal, AM/FM, self-adhesive, amplified
Antenna internal, AM/FM, self-adhesive, amplified
Parameters
- location: self-adhesive on the glass from the inside
- frequency range: AM 0.52-1.71 MHz / FM 87.5-108 MHz
- phantom power supply 12V
- built-in amplifier gain: 26dB
- current consumption: 45mA
- dipole width: 30cm
- drain length: 2.4 m
- ground cable length: 140mm
- car radio connector: FAKRA female (white)
- dimensions: 305x26x14mm
- weight: 80g
- protection: IP50
- working temperature: -10 to + 90 °C
Parameters
| Use | Universal |
|---|---|
| Location | other |
| Signal | AM/FM |
| Manufacturer | CALEARO |
| Connector | FAKRA |
| Weight | 0.068 kg |
