Discontinued

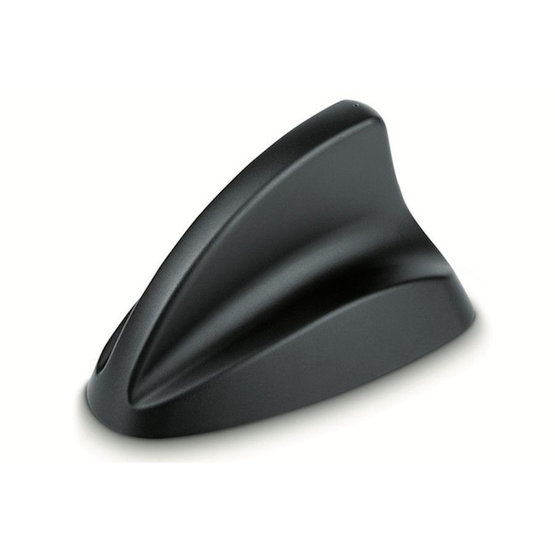

CAL-7727055 Calearo antenna Shark2 AM FM GPS

CALEARO | CAL-7727055

Roof antenna, AM/FM/GPS, Shark2

Discontinued

Roof antenna, AM/FM/GPS, Shark2

Parameters

  • dimensions: 11.7 x 7.6 x 6.2cm (LxWxH)
  • body hole diameter: round 19mm / square 15x15mm

GPS

  • GPS frequency range: 1575.42 (+/- 1.023) MHz
  • phantom power supply: 3-5V
  • gain:> 27dB
  • current consumption: max.30mA
  • VSWR: <2: 1
  • antenna lead length: 5m
  • connector for GPS device: SMB female
  • antenna connector: FAKRA male (blue)

AM / FM

  • frequency range AM / FM: 0.52 - 1.71 / 88-108MH
  • phantom and separate power supply: 12V
  • without antenna lead
  • antenna connector: RAKU2 female (cable 14cm)

For cars

  • on the roof for cars or trucks
  • replacement for the original antenna
  • if a different type of connector is required on the device side, a reduction can be used

Parameters

Connector FAKRA, RAKU2, SMB, w/o lead
Signal AM/FM, GPS
Location rear
Manufacturer CALEARO
Use Universal
Weight 0.42 kg
