Discontinued

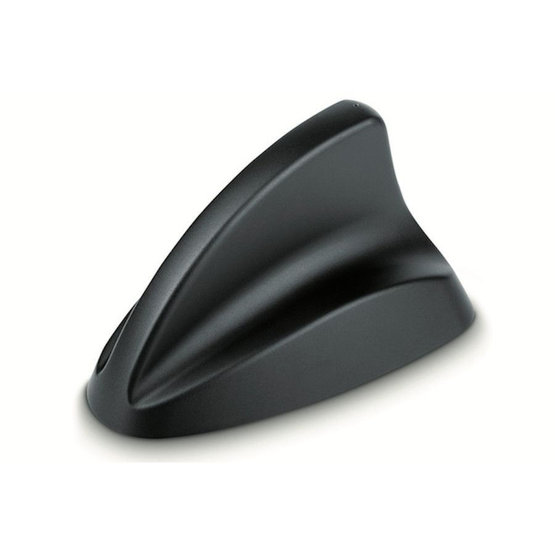

CAL-7727060 Calearo antenna Shark2 AM FM WIFI

CALEARO | CAL-7727060

Roof antenna fin AM/FM/WIFI, Shark2


Discontinued

Roof antenna fin AM/FM/WIFI, Shark2

Parameters

  • dimensions: 11.7 x 7.6 x 6.2cm (LxWxH)
  • body hole diameter: round 19mm / square 15x15mm

WiFi

  • WiFi frequency range: 2400-2485MHz
  • gain: 0dB
  • max. power: 8W
  • VSWR: <2.5: 1
  • without antenna lead
  • antenna connector: SMA male (cable 10cm)

AM / FM

  • frequency range AM / FM: 0.52 - 1.71 / 88-108MH
  • phantom and separate power supply: 12V
  • without antenna lead
  • antenna connector: RAKU2 female (cable 14cm)

For vehicles

  • on the roof for cars or trucks
  • can be used as a replacement for the original antenna
  • if another connector is required on the device side, a reduction can be used

Parameters

Use Universal
Location rear
Connector SMA, w/o lead, RAKU2
Manufacturer CALEARO
Signal AM/FM, WIFI
Weight 0.34 kg
