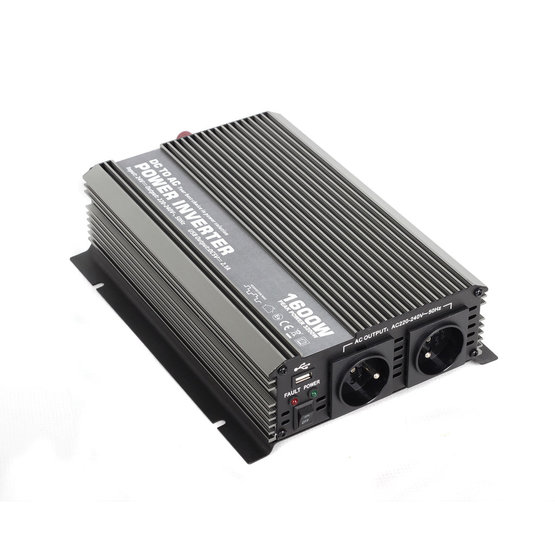

CAR1600-24V Voltage inverter from 24V to 230V + USB, 1600W
Power Inverter 1600W suitable for vehicles with 24V on-board network (trucks), for appliances 230V powered, such as microwaves, kettles, boilers, pumps, light bulbs, hand tools, refrigerators. The output current has the form of a modified sinusoid (rectangular waveform) with a frequency of 50Hz/230V, it is equipped with a USB output for charging USB devices (MP3 players,...).
Power Inverter 1600W suitable for vehicles with 24V on-board network (trucks), for appliances 230V powered, such as microwaves, kettles, boilers, pumps, light bulbs, hand tools, refrigerators. The output current has the form of a modified sinusoid (rectangular waveform) with a frequency of 50Hz/230V, it is equipped with a USB output for charging USB devices (MP3 players,...).
Features:
- maximum peak power of 3.200W
- nominal power 1.600W
- quiescent power: 400mA
- input voltage 24V
- dimensions 322*208*77 mm
- USB output 5V (max. 500 mA)
- output frequency 50 ±3 Hz
- protection against overload, overheating, overvoltage at the input, undervoltage at the input
- protection against polarity reversal
ATTENTION: Do not connect the output of the inverter together with other sources of alternating current! (with another 230V mains socket, neither in parallel, nor in series, nor with the mains socket of the public distribution network/other converters).
Examples of using an inverter with suitable performance (make sure the inverter is not undersized).
Parameters
| Product type | Power inverters |
|---|---|
| Input / Output | 24V / 230V |
| Weight | 3.377 kg |
