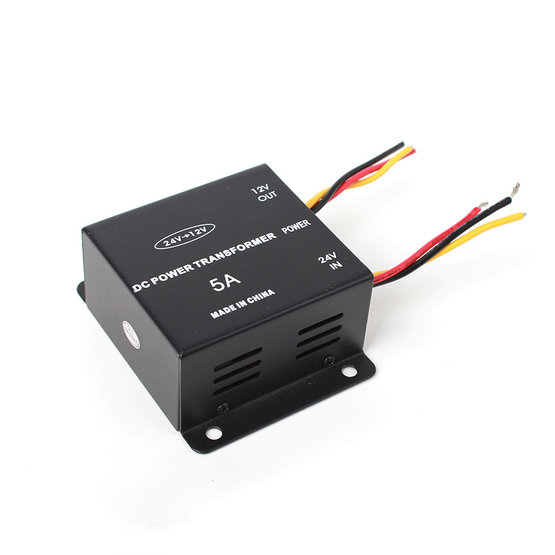

DC5A Voltage dropper 24V to 12V, with ACC wire

| DC5A

The voltage converter from 24V to 12V - 5A is designed for trucks (24V) to connect 12V electrical appliances. The inverter includes the ignition input and output wires (Yellow), allowing you to connect, the car head unit for example.

Show price
DC5A Voltage dropper 24V to 12V, with ACC wire

The voltage converter from 24V to 12V - 5A is designed for trucks (24V) to connect 12V electrical appliances. The inverter includes the ignition input and output wires (Yellow), allowing you to connect, the car head unit for example.

Features:

  • Input voltage range: 20-40V DC
  • Output Voltage Range: 12V-13.8V DC
  • Standby Input Current: <50mA
  • max. current at the output: 5A / 60W by 12V
  • Efficiency: 90%
  • Operating temperature: maximum + 80 °C
  • Protection: over voltage, over current, over temperature, output short circuit
  • Dimensions (in mm): 100x80x40
  • Weight: 150g
  • Cooling: Cooling ducts and aluminum ribs

A fuse with the maximum inverter load value must be connected before the inverter. Install in a well-ventilated and dry place where there is no overheating from other heat sources such as the engine, pumps and similar.

Parameters

Input / Output 24V / 12V
Weight 0.323 kg
