Keetec BS 810 LCD IB parking assistant

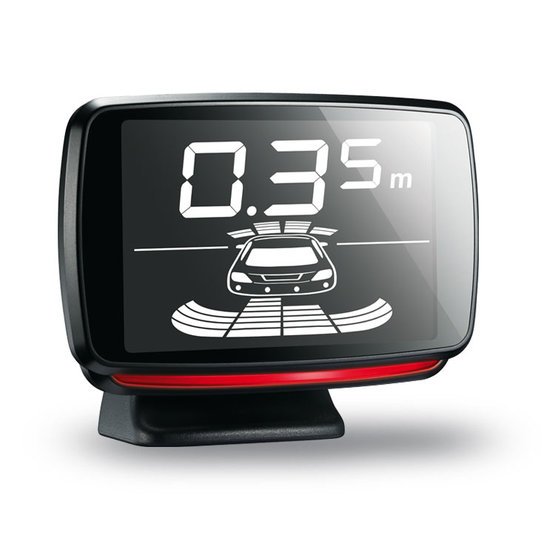

Rear and front parking system KEETEC with 8 innert black sensors and LCD Display with adjustable volume button on it. The system warns user by accoustic signals. Dual intelligent functions for cars with tow-bar, spare wheel or other protrusion. New functions of sensitivity setting and learning function added. Perfect performance under heavy rain environment. Set includes 4 pieces of ultrasonic sensors, control unit, LCD Display and wiring. The unit is for vehicles with 12V DC only.

System Description:

• sensors with fixed assembly to the bumper
• fast obstacle detection
• sound alarm (beeps changing frequency) indicates the position of obstacles
• excellent coverage of the entire area behind the vehicle
• when is the obstacle at a distance of 30 cm from the vehicle, you will hear a continuous tone
• auto detection (automatic identification of the defective sensor)
• excellent coverage of the entire area behind the vehicle, horizontal scan angle of 110° ± 15°
• angle washers  0°, 4°, 10° included in the package
• sensors core diameter 14 mm
• mounting hole 18,8 mm
• sensors supplied with 10 cm lenght cable and waterproof connector that ensures easy replacement if necessary
• adjustable volume directly on the buzzer body (3 levels)
• adjustable sensitivity of the sensors on the control unit (2 levels)
• the unique learning function (ignoring permanent obstacle - tow bar, spare wheel, frame, ...)
• with additional ACC wire (pink wire) for stable power supply(optional connection)

Technical parameters:

• Operating voltage: 9 ~ 16V DC
• Working current : < 350Ma
• Detection range: 0.3 ~ 2.5 m
• Display range : 0,3 ~ 2.5 m
• Front: 0,3 ~ 0,9 m (Driving forward)
•           0,3 ~ 0,9 m (Reversing)
• Rear: 0,3 ~ 2.5 m

Operating temperature

• ECU: -40°C ~ +80°C
• Display: -40°C ~ +80°C
• Sensor: -40°C ~ +80°C
