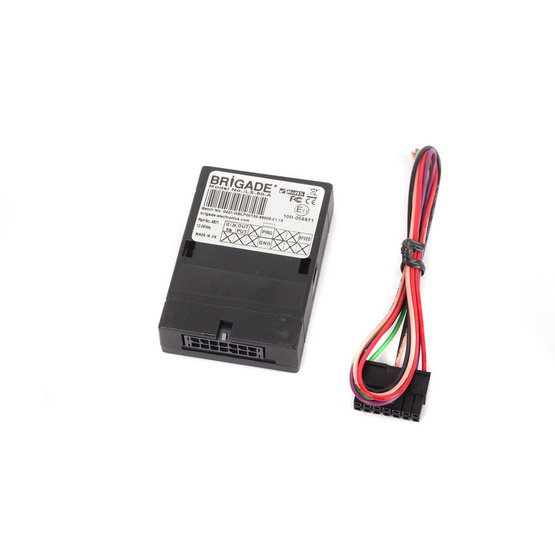

LS-60-A Speed module for Blind spot detection

| LS-60-A

The Module is designed to turn the side detection system on automatically, depending on the actual speed of the vehicle. The side detection is thus active at low speeds only, for example up to 20 km/h. The speed treshold value can be set as desired.

Show price
LS-60-A Speed module for Blind spot detection

The Module is designed to turn the side detection system on automatically, depending on the actual speed of the vehicle. The side detection is thus active at low speeds only, for example up to 20 km/h. The speed treshold value can be set as desired.

  • e-mark E11 (UK)

Features

  • 1x speed pulse input
  • 1x programming wire
    • speed treshold range 0 km/h - 100 km/h
  • 1x output
    • max switched current 1.2A
  • power supply range 10VDC - 32VDC
  • current consumption
    • with output off 0.03A
    • when the output is switched on max 1.8A

Parameters

Weight 0.041 kg
