BC VW-04 Rearview camera VW Škoda Superb
|
BC VW-04

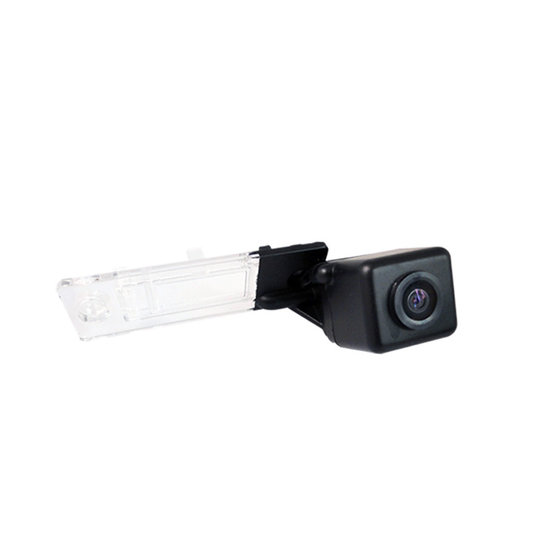

OEM colour parking camera to install into the rear licence plate light body.
OEM colour parking camera to install into the rear licence plate light body.
Assigned for the car models:
- VW Golf Plus (2005-2009)
- VW Jetta V. (2006-2010)
- VW Passat B5 Sedan (2001-2005)
- VW Passat B6 Combi (2006-2009)
- VW Touran (2003-2009)
- VW Caddy (2004-2010)
- VW Caddy (2010->)
- VW Transporter T5 (2003-2010) for both types of rear door
- VW Multivan (2003-2010)
- VW Transporter T6 (2015->)
- VW Multivan T6 (2015->)
- ŠKODA Superb I.(12/2001-3/2008)
Technical parameters:
- sensor: PC3089 1/3"
- option to enable/disable to display the guide lines
- electronic Aperture: 1/60 1/10000 sec.
- minimum lighting: 0.1Lux
- signal-to-noise ratio:> 48dB
- TV system: NTSC (supported by each monitor/head unit)
- number of TV lines: 600
- effective pixels 668 × 576 pixels
- weather protection: IP67
- view angle: 170°
- camera body: durable plastics "private housing"
- image display: mirror
- operating temperature from -30 °C to + 70 °C
- AGC, BLC, white balance: automatically
- signal cable: 6.2 m long with CINCH / RCA connector
- video output: 1.0V / 75 Ohm
- power cord length: 1m
- power supply: 12V DC
- consumption: <1W
Camera dimensions:
- base 24,5 x 73 mm
- hole pitch for screws 60 mm
Note: The camera is designed for aftermarket radio units with RCA AV input. Connecting to an original radio unit may require to add the video adapter for parking camera!
Parameters
| Model of the car | Multivan, Superb I., Golf Plus, Jetta V., Transporter, Touran, Passat, Caddy |
|---|---|
| Signal | analog |
| Brand of the car | Škoda, VW |
| Plugs | CVBS-RCA |
| Use | OEM |
| For cars | commercial, passanger |
| Weight | 0.4 kg |
