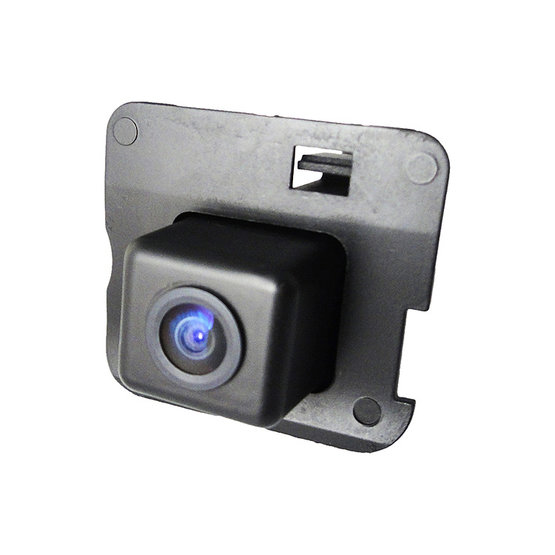

OEM Parking camera Mercedes BC MCD-03

OEM colour parking camera to install into the original hole in the space of the rear plate number light.

Suitable for the car models:

• MERCEDES R-class [W251] (2005-2010)

Technical Parameters:

• sensor: PC3089 1/3"
• option to enable/disable to display the guide lines
• electronic Aperture: 1/60 1/10000 sec.
• minimum lighting: 0.1Lux
• signal-to-noise ratio:> 48dB
• TV system: NTSC (supported by each monitor/head unit)
• number of TV lines: 600
• effective pixels 668 × 576 pixels
• weather protection: IP67
• view angle: 170°
• camera body: durable plastics "private housing"
• image display: mirror
• operating temperature from -30 °C to + 70 °C
• AGC, BLC, white balance: automatically
• signal cable: 6.2 m long with CINCH / RCA connector
• video output: 1.0V / 75 Ohm
• power cord length: 1m
• power supply: 12V DC
• consumption: <1W

Camera dimensions:

• base 39 x 46 x 50 mm

Note: The camera is designed for aftermarket radio units with RCA AV input. Connecting to an original radio unit may require to add the video adapter for parking camera!
