OEM Parking camera VW / Škoda BC VW-06

| BC VW-06

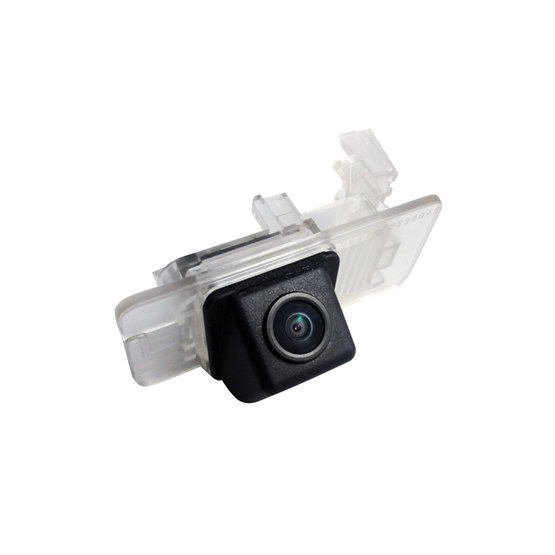

OEM colour parking camera to install into the rear licence plate light body. There is a cap in the camera body for the mounting of the original light bulb.

OEM Parking camera VW / Škoda BC VW-06

Discontinued

OEM colour parking camera to install into the rear licence plate light body.
There is a cap in the camera body for the mounting of the original light bulb.

Assigned for the car models:

  • ŠKODA Superb II. Combi (3/2008->)
  • ŠKODA Rapid [NH] (10/2012->)
  • Škoda Octavia III. (2013->)
  • Škoda Yeti (2012->)
  • ŠKODA Citigo (10/2011->)
  • VW Polo IV. (2005-2009)
  • VW Jetta
  • VW Golf V. (10/2003->)
  • VW Pheaton
  • VW Beetle
  • VW Passat (2011->)
  • VW Passat B6 (2005->)
  • VW Sharan II. (2010->)
  • SEAT Leon [1P] (2005->)
  • SEAT Altea XL

Technical parameters:

  • CCD 1/4 " sensor chip
  • diameter of the object lens 19mm
  • it displays the guide links for easy orientation by parking
  • Electronic aperture: 1/50 1/10000 sec.
  • Minimum illumination: 0,1 Lux
  • Signal to noise ratio:> 48dB
  • TV system: NTSC
  • TV lines: 480
  • Waterproof: IP68
  • Lens angle: 170 °
  • Video output: 1.0V / 75 Ohm
  • White balance: automatic
  • Operating temperature -30 ° C to +70 ° C
  • Signal cable lenght 7meters ended with CINCH connectors
  • Power supply cabel lenght 1m
  • Power consuption: <1W
Note: The camera is designed for aftermarket radio units with RCA AV input. Connecting to an original radio unit may require to add the video adapter for parking camera!

Parameters

Model of the car Yeti, Altea XL, , Phaeton, Beetle II., Polo IV., Golf, Jetta, Leon, Sharan II., Passat, Superb II., Rapid, Octavia III.
Brand of the car VW, Škoda, Seat
Weight 0.4 kg
