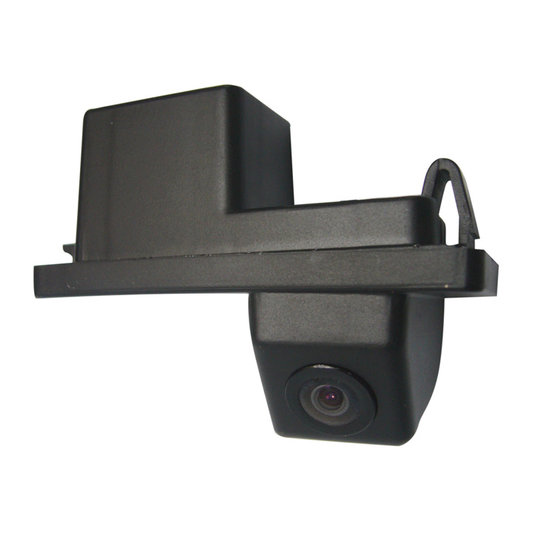

OEM rearview camera SSANGYONG Rexton II, Kyron, BC SSG-68

OEM colour parking camera to install into the place of rear licence plate, for SSANGYONG Rexton II, Kyron cars. There is a place in the camera body assigned for the original light bulb base.

Suitable for cars:

• SSANGYONG Rexton II. (2006-2013)
• SSANGYONG Kyron (2005->)

Specification:

• sensor: PC3089 1/3"
• option to enable/disable to display the guide lines
• electronic Aperture: 1/60 1/10000 sec.
• minimum lighting: 0.1Lux
• signal-to-noise ratio:> 48dB
• TV system: NTSC (supported by each monitor/head unit)
• number of TV lines: 600
• effective pixels 668 × 576 pixels
• weather protection: IP67
• view angle: 170°
• camera body: durable plastics "private housing"
• image display: mirror
• operating temperature from -30 °C to + 70 °C
• AGC, BLC, white balance: automatically
• signal cable: 6.2 m long with CINCH / RCA connector
• video output: 1.0V / 75 Ohm
• power cord length: 1m
• power supply: 12V DC
• consumption: <1W

Camera dimensions:

• base 36 x 78 mm

NOTE: The camera is designed for aftermarket head units with RCA camera input. Using with oem radio is likely to require the specific video adapter for parking camera!
