Pandora ELITE two-way GSM/GPS car alarm

Pandora ELITE is an elite car alarm, which was developed to provide the highest level of vehicle protection. Thanks to modern communication interfaces such as GSM-4G LTE, GPRS, RF 868 MHz-LoRa and Bluetooth 5.0, it allows constant and effective surveillance of the vehicle. In addition, the system is fully compatible with the FD CAN bus, which allows it to work even in the latest vehicle models.

Control unit

• Integrated 4G LTE / GSM modem
• 2x FD CAN communication protocol designed for high-speed and efficient data exchange in cars
• 2x CAN BUS and 1x LIN BUS 1x BEAN BUS connectivity
• Integrated 2.4 GHz module with support for low-energy Bluetooth 5.0.
• 868MHz radio module for communication with two-way remote control (LoRa)
• Integrated GPS/GLONASS module for precise vehicle localization
• Integrated backup power supply
• Integrated Wi-Fi antenna to improve the accuracy of geolocation data
• Slot for nano SIM card
• Support for using RMD-BM v2 module for BMW "E" series immobilizer clone
• Support for Mercedes-Benz immobilizer cloning
• Control via mobile application for iOS and Android
• Personal PIN code deactivating the system
• Hands-Free mode for activation/deactivation without using the remote control
• Immobilizer and 2 anti-hijacking modes (Anti-Hi-Jack 1, Anti-Hi-Jack 2)
• Automatic activation
• Authorization mode using buttons on the steering wheel
• Technology for replacing the original immobilizer during remote start
• Encrypted communication
• Unique 128-bit encryption key
• Integrated 3D acceleration chip for detection tilt, shock and vehicle movement with adjustable sensitivity via mobile app
• Integrated temperature sensor

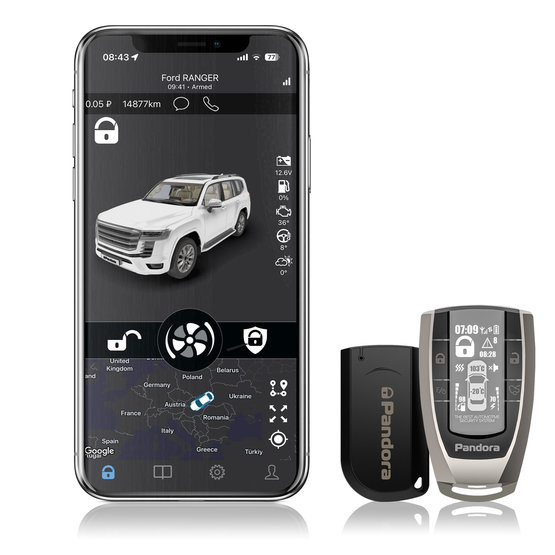

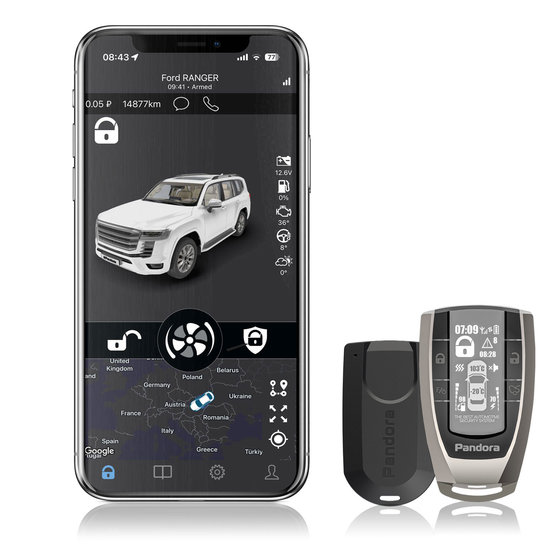

Remote control D-061

• LoRa technology
• Frequency 868MHz
• Support Bluetooth 5.0
• OLED display
• USB-C port
• Integrated 400mAh battery
• Support wireless charging
• Range up to 2500 meters
• Can also be used for authorization

Immobilizer controller (tag)

• Encrypted communication
• Unique 128-bit encryption key
• LED indication
• Service mode on/off button
• Integrated accelerometer
• CR-2032 battery

Monitored vehicle inputs
The Pandora ELITE car alarm allows you to monitor and evaluate violations of the following zones in the vehicle:

• Individual vehicle doors
• Front hood
• Trunk
• Ignition
• Brake pedal
• 2-zone shock sensor disturbance
• Motion sensor disturbance
• Tilt sensor disturbance
• Low on-board voltage

System set

• Two-way remote control (D-061)
• Remote control (tag) Pandora BT-775
• Remote control (tag) Pandora BT-785
• Plastic card with PIN-code
• External service button
• Buzzer
• Base unit
• Bluetooth RF module Pandora RFM-470
• Blocking relay
• External GSM antenna
• Bluetooth siren PS-332
• External engine temperature sensor
• Cables and fasteners
• User manual
• Wiring diagram

Mobile application
