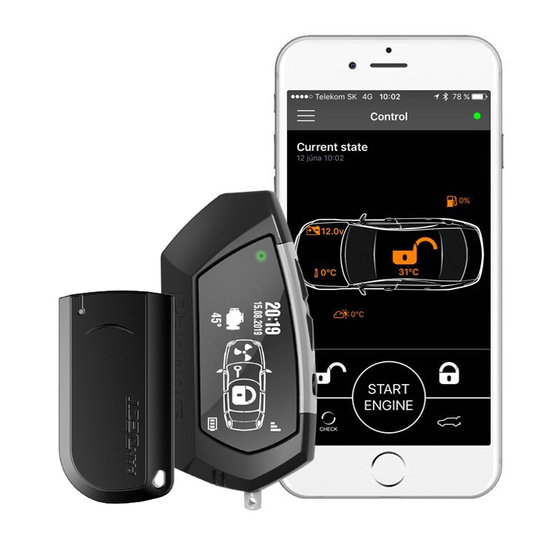

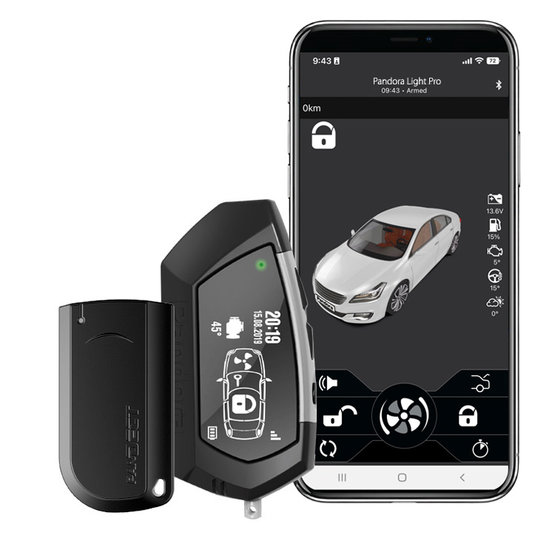

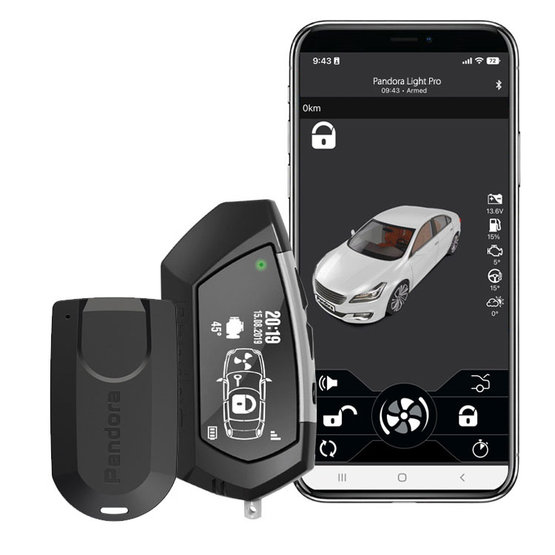

Pandora LIGHT PRO CAN BUS car alarm

Pandora LIGHT PRO is a system from the ultimate line of offline security products. So far, no monthly fee system has allowed control with a modern 2-way remote and mobile application at the same time. It's possible now with the new Pandora Light Pro and Bluetooth 5.0 technology. The remote control with a large and clear OLED display and LoRa (Long Range) technology now provides a detailed overview of the vehicle's status, even on long distances. The easy-to-use mobile application allows you to completely control vehicle with your smartphone within Bluetooth range. Comfort features also include the ability to remotely start the vehicle to warm up or cool the interior, as well as the functions for activating independent heating. The built-in Bluetooth module also allows the use of contactless tags or the smartphone itself for driver authorization. Approval EHK 116, certified and approved by TÜV SÜD.

IMPORTANT!!! Pandora LIGHT PRO v2 is the latest generation of Pandora systems and has a different programming MENU compared to the previous version. Detailed information about the changes is included in the assembly instructions.

System characteristics

• Two-way OLED remote control
• Decorative chrome strip
• Separate button to activate and deactivate alarm.
• View the status of 10 independent guarded zones.
• Remote control vibrating when alarm triggered
• 16 different melodies for announcement.
• OLED display
• Confirm keystroke vibration.
• Rechargeable, Lithium-Polymer Battery (Micro USB Connector) \ t
• Driver Battery Status Indicator.
• View the current time and alarm.
• Time synchronization with main unit for accurate event determination.
• Display temperature of internal temperature, engine temperature * and vehicle battery voltage.
• Possibility to adjust the sensitivity of the shock sensor.
• The sensitivity of the motion sensor can be set.
• Overview of events with time and cause.
• Automatic radio coverage check.

Main unit

• Radio Frequency Communication 868 MHz LoRa (Long Range)
• Built-in BLUETOOH 5.0 chip for communication with contactless pendants and mobile application.
• Encrypted communication with a 128-bit key.
• Record system events to main unit memory and move information to the driver when it is within range.
• It can operate a digital lock relay.
• Built-in accelerometer with adaptive motion detection and shock detection algorithm.
• Main unit voltage monitoring.
• Trunk and hood inlets.
• Improved sensor data processing, false alarm.
• Accurate measurement of interior temperature, engine temperature * with display on remote control display.
• Sequential door unlocking.
• Activating the engine running alarm.
• Automatic alarm activation.
• Acceptance of interior light dimming when alarm is activated.
• Software update via micro-USB connector.

* Motor temperature sensing is possible when using a temperature sensor. The connection option depends on the system settings.

Monitored vehicle inputs

Pandora LIGHT PRO allows you to watch the following independent inputs. Input Violations it is stored in the system memory and also displayed in the remote control view.

• each door individually
• front hood
• suitcase
• ignition
• brake pedal
• shock sensor - level 1 (warning) *
• shock sensor - 2nd level (alarm)
• motion sensor
• tilt sensor
• low on-board voltage

* All alarm information is stored in the device together with date and time information. History can be viewed on the remote but also in the mobile application.

Package Contents

• Controller
• Two-way remote control with OLED display
• Tag tag
• Service button with three-color LED indication
• User manual
• Plastic card with PIN code
• Engine temperature sensor
• Main cabling
• LIN interface wiring
• Wiring for IMMO interface
• Mini Relay
• Fasteners
• Micro-USB cable
• box
