Pandora NAV-035
|
Pandora NAV-035

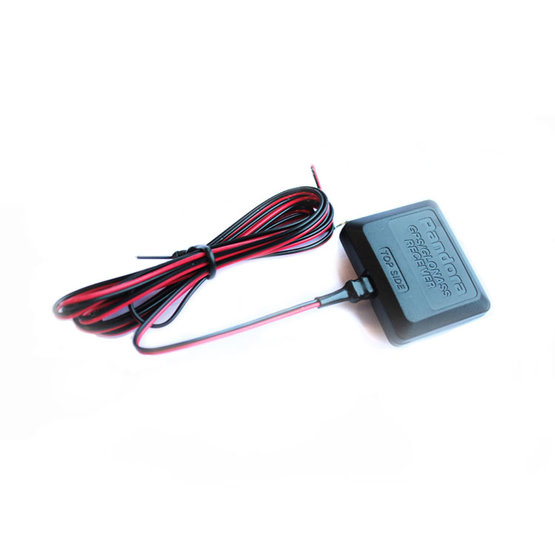

Pandora NAV-035 is a high-sensitivity GPS/GLONASS module uses 2,4 GHz for working with an alarm system base unit.
Pandora NAV-035 is a high-sensitivity GPS/GLONASS module uses 2,4 GHz for working with an alarm system base unit. The module should be placed under the dashboard, aerial should be placed in the top for better reception of the satelite signal.
Compatible with: Pandora Elite and Pandora Professional.
| Technical parameters | |
|---|---|
| Supply voltage | 12V |
| Current consumption | in active mode:16mA in sleep mode: no more than 5mA |
| Operating temperature range | from -40°C to +85°C |
| Connection interface | 2,4GHz |
| Signal frequency | GPS 1575,42 MHz GLONASS 1597-1606 MHz |
| Sensitivity (cold start) | -147dBm |
| Sensitivity (tracking) | -162dBm |
| Cold start time | 35 seconds |
| Hot start time | 10 seconds |
Parameters
| Type | Alarm accessories |
|---|---|
| Manufacturer | Pandora |
| Weight | 0.02 kg |
