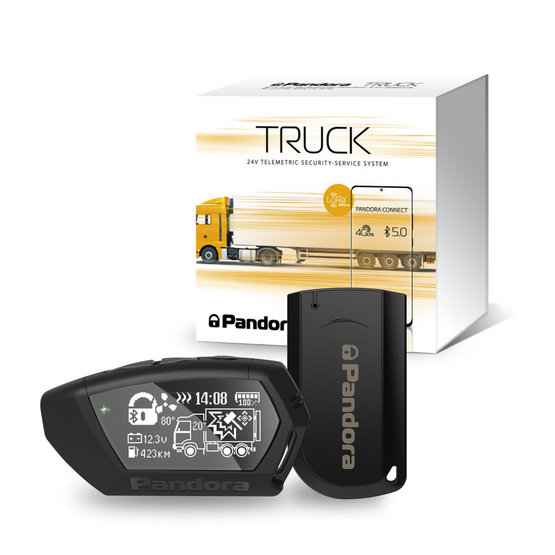

Pandora TRUCK GSM/GPS car alarm for trucks

Basic unit

• Integrated 4G LTE / GSM modem
• Integrated 868MHz (LoRa) radio communication module with 2-way remote control
• Integrated 2.4 GHz module with low power Bluetooth 5.0 support.
• Nano SIM card slot
• Built-in high-sensitivity GPS/GLONASS module
• iOS and Android mobile control
• Personal PIN code deactivating system
• Hands-free mode for activating/deactivating without using a controller
• Immobilizer and 2 anti-hijack modes (Anti-Hi-Jack 1, Anti-Hi-Jack 2)
• Automatic activation
• Coded communication
• Unique 128-bit encryption key
• built-in 3D accelerometer to detect tilt, shock and vehicle motion, with sensitivity adjustable via a mobile application.
• Integrated temperature sensor
• Preparation for the CAN interface (Data will be gradually implemented)

Immobilizer control (tag)

• Unique 128-bit encryption key.
• LED indication.
• Service switch on / off button.
• Integrated accelerometer
• CR-2032

2-way OLED remote

• Arming and disarming security system using separate buttons.
• Vibrating alert.
• 16 notification ringtones.
• OLED-display
• Vibration confirmation of the button press.
• Integrated battery.
• Battery level indicator.
• Micro USB port to charge and update the driver firmware.
• Current time indication.
• Indication LED.
• Time synchronizes with the base unit for exact time stamp in the event history.
• Engine and interior temperature, voltage and fuel level indication.
• Prompt remote access to the settings of shock sensor.
• Prompt remote access to the settings of motion sensor.
• View event history with time and event stamps.
• Automatic control of RF coverage zone.

Tracked vehicle inputs
The Pandora TRUCK car alarm allows you to monitor and evaluate the following zones in the vehicle:

• Individual vehicle doors
• Front hood
• Trunk
• Ignition
• Brake pedal
• 2 zonal disturbance from the shock sensor
• Violation from the motion sensor
• Violation from the tilt sensor
• Low voltage on-board network

System set

• User manual
• Owner’s personal card
• Remote control (Pandora D-043T)
• Radio tag 2x (Panora BT-780)
• External VALET button
• Base unit
• Piezo siren PS-330 (24V)
• External temperature sensors
• Main cable of the base unit
• Fastening kit
• Wiring diagram
• Packaging

Mobile application
