PF-1653 1 plastic frame 2DIN VW Škoda

ACV GmbH | PF-1653 1

2DIN car multimedia installation kit for vehicles VW Golf / Passat .../ Škoda / Seat


Discontinued Prejsť na nový model

2DIN installation kit with metal frame for cars:
Seat Leon [1P/1PN] (3/2009-10/2012)
Seat Alhambra [7N] (10/2010->)

ŠKODA Fabia II. (2007->) - only for cars with preparation for 2DIN car radio
ŠKODA Roomster (9/2006->) - only for cars with preparation for 2DIN car radio
ŠKODA Yeti - only for cars with preparation for 2DIN car radio
ŠKODA Rapid [NH] (10/2012->)
ŠKODA Octavia II. (2004-2008) - using frame PF-2997 or PF-2998
ŠKODA Octavia II. (2008->) - using the original Škoda frame
ŠKODA Superb II. - only for cars with preparation for 2DIN car radio

VW Caddy [2K] (1/2004->2015)
VW Polo (6R) (09->)
VW Eos [1F] (2006->)
VW Golf V. [1K][1KP] (8/2003->)
VW Golf V. Plus [1K][1KP] (8/2003->)
VW Golf VI. (2008->)
VW Jetta V. (2003-2008)
VW Jetta VI. (2008->)
VW Passat B6 (6/2005->)
VW Passat B7 (2010->)
VW Passat CC (2008-2012) and VW CC (1/2012->)
VW Scirocco (8/2008->)
VW T5 "Startline" (2010->)
VW Tiguan (4/2007->)
VW Touran (2/2003->)
VW Transporter (10/2009->)
VW T5 (10/2009->)
VW Multivan (10/2009->)
VW Caravelle (10/2009->)
VW Beetle II. (4/2011->)
VW Sharan II. (9/2010->)
VW Amarok (3/2010->)

Color: black Size of the opening for the front panel of the car radio: 175 x 98 (W x H)
The dimensions of the opening correspond to the dimensions of the front panel of 2DIN car radios Kenwood, Alpine, Clarion, Pioneer, JVC, Autosonik, Macrom....

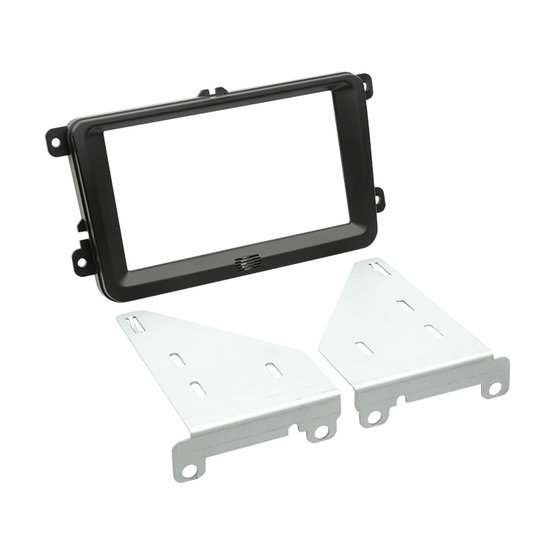

The set includes: Plastic adapter, side metal brackets, screws, installation instructions (it is not necessary to use the metal frame of the car radio)

Parameters

Model of the car Rapid, T5, Tiguan, Touran, Octavia II., Superb II., Caddy, Transporter, Polo, Eos, Beetle II., Golf V., Sharan II., Multivan, Leon, Alhambra, Scirocco, Passat B7, Passat CC, Jetta V., Jetta VI., Golf VI., Amarok, Passat B6, Roomster, Fabia II., Yeti
Brand of the car Seat, Škoda, VW
Weight 0.093 kg
