Discontinued

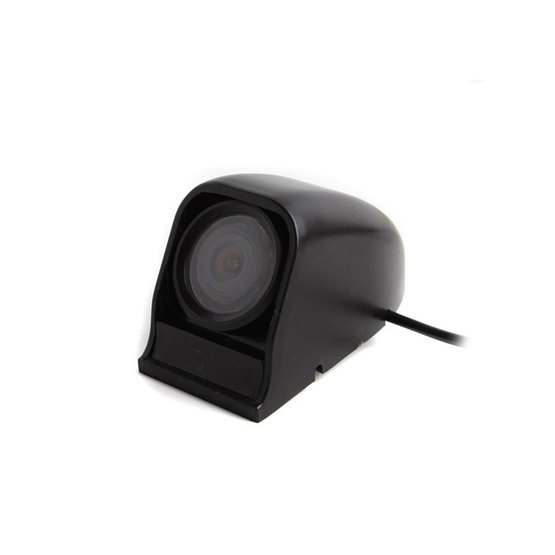

Rear view camera 12V universal BC UNI-08

| BC UNI-08

CCD side-rear view mini camera universal, 12V, without guide lines, view angle of 140°, with automatic IR light.


Discontinued

CCD side-rear view camera universal, 12V, without guide lines, view angle of 140°, with automatic IR light. Camera lens can be adjusted (properly turned around its axis), then the camera can be used as left or right.

Technical parameters:

  • designed for outdoor installation on the side wall of cars
  • option to use as left or right
  • waterproof: IP67
  • Sony CCD 1/4" sensor chip
  • lens Diameter: 19 mm
  • electronic shutter: 1/50 1/10000 sec.
  • minimum illumination: 0,05Lux
  • 10pcs of IR LEDs
  • S/N Ratio:> 48 db
  • TV system: NTSC
  • number of TV lines: 480
  • view angle: 140°
  • video output: 1.0V / 75 ohm
  • white balance: Auto
  • operating temperature from -30 °C to + 70 °C
  • signal cable length: 6m ended with RCA connectors
  • power cable length: 1 m
  • power supply: 12V DC
  • power consumption: <1W
  • mirror image
  • the camera body dimensions: 50x80x40 mm

Parameters

Use UNI
For cars commercial
Signal analog
Plugs CVBS-RCA
Weight 0.214 kg
