RM LCD-A OPL Mirror with display 4.3" 2ch RCA 12V

| RM LCD-A OPL

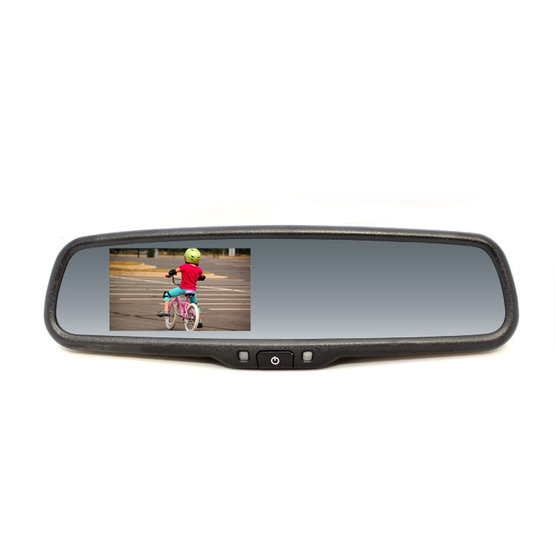

Rearview mirror with monitor 4.3" integrated, with „Autodimming“ function, for Opel cars, is used to display the parking camera image and also to connect another video signal. The rearview mirror is installed instead of the original central car mirror.


Discontinued

Rearview mirror with monitor 4.3" integrated, with „Autodimming“ function, for Opel cars, is used to display the parking camera image and also to connect another video signal. The rearview mirror is installed instead of the original central car mirror.

After the reverse gear is shifted, a real image is displayed behind the vehicle for easier and safer reversing and parking.

Automatic brightness regulation
When the video from the parking camera is displayed on the display, the screen automatically adjusts brightness to ambient light. This ensures that the display will be visible even in bright sunny weather. With auto-dimming, the display will not dazzle the driver at night even if the light directly hits on the mirror glass.

Technical parameters:

  • supply voltage: 12V
  • color resolution: 16.7M colors
  • display screen: TFT LCD
  • power consumption: 8W
  • display resolution: 480 (H) x 272 (H)
  • display diagonal: 4.3"
  • video inputs: 2x connector (RCA - CINCH)
  • activation of the input: automatically after the video signal appears
  • automatically adjust the brightness of the display
  • TV standard: PAL / NTSC (automatic)
  • operating temperature: -20 to + 70 °C
  • total dimensions: 80 x 270 x 42mm

Supported cars:
Note: We recommend that you check the compatibility with your car's holder type before ordering.

  • OPEL most of the models
  • OPEL Vectra C
  • OPEL Calibra (95-)
  • OPEL Astra (3/95-98)
  • OPEL Astra H (04-09)
  • OPEL Combo

Note: For cars without rain sensor only!

Parameters

Model of the car , Vivaro, Mokka, Astra, Zafira, Monterey, Combo, Zafira Tourer, Movano, Speedster, Signum, Frontera, Corsa Sport, Corsa, Omega, Tigra, Tigra Twin Top, Agila, Karl, Vectra, Ampera, Meriva, Adam, GTC, Insignia
Brand of the car Opel
For cars passanger
Use OEM
Diagonal 4,3"
Signal analog
Plugs CVBS-RCA
Weight 0.895 kg
