Discontinued

RM LCD PSA Mirror with display 4.3" 2ch RCA 12V

| RM LCD PSA

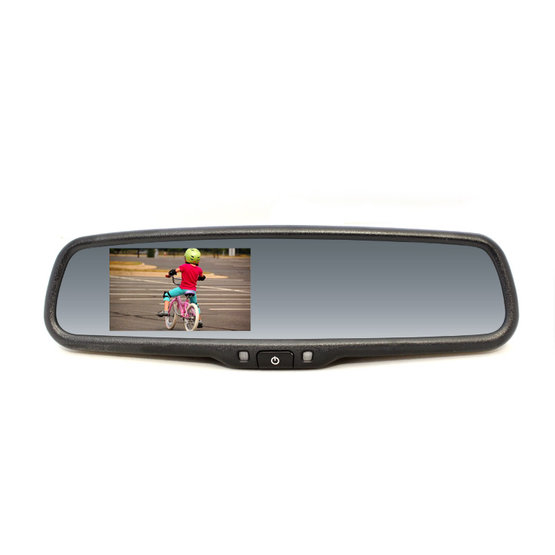

Rearview mirror with monitor 4.3" integrated, for Peugeot, Citroen, Volvo, BMW cars, is used to display the parking camera image and also to connect another video signal. The rearview mirror is installed instead of the original central car mirror.


Discontinued

Rearview mirror with monitor 4.3" integrated, for Peugeot, Citroen, Volvo, BMW cars, is used to display the parking camera image and also to connect another video signal. The rearview mirror is installed instead of the original central car mirror.

After the reverse gear is shifted, a real image is displayed behind the vehicle for easier and safer reversing and parking.

Technical parameters:

  • supply voltage: 12V
  • color resolution: 16.7M colors
  • display screen: TFT LCD
  • power consumption: 8W
  • display resolution: 480 (H) x 272 (H)
  • display diagonal: 4.3"
  • video inputs: 2x connector (RCA - CINCH)
  • activation of the input: automatically after the video signal appears
  • automatically adjust the brightness of the display
  • TV standard: PAL / NTSC (automatic)
  • operating temperature: -20 to + 70 °C
  • total dimensions: 80 x 270 x 42mm

Supported cars:
Note: We recommend that you check the compatibility with your car's holder type before ordering.

  • CITROEN C3 Picasso (09-)
  • CITROEN C5 (08-)
  • CITROEN C8 (02-)
  • CITROEN Berlingo II. (08-)
  • CITROEN Jumper (Facelift 14-)
  • PEUGEOT 407 (04-)
  • PEUGEOT 807 (02-)
  • PEUGEOT 308CC (08-)
  • PEUGEOT 3008 (09-)
  • PEUGEOT 5008 (09-)
  • PEUGEOT Partner II. (08-)
  • PEUGEOT Boxer (Facelift 14-)
  • BMW
  • FIAT Ducato ( Facelift 14-)
  • VOLVO C30 (07-)
  • VOLVO S40 (03-)
  • VOLVO V50 (03-)
  • VOLVO C70 (06-)
  • VOLVO V70 (07-)
  • VOLVO S80 (07-)
  • VOLVO XC70 (07-)

Note: For cars without rain sensor only!

Parameters

Model of the car 5008, 5 (E39), X6 (E71), Partner, 5 (E60), Z3, Boxer, 5 (E61), Z4, 6 (E63), Z4 (E89), 1, 6 (E64), Z8, 1 (E81), 7, 1 (E82), 7 (E23), C8, Berlingo, C5, C3, Jumper, V50, C30, C70, XC70, V70, S80, S40, 308, 3008, 407, 807, Ducato, Mini, 7 (E32), 1 (E87), 1 (E88), X1, 3 (E30), X3, 3 (E36), X3 (E83), X5 (E56), 7 (E38), 5 (E34), 3 Compact, X6, 3 (E91), X5, X5 (E53), 3 (E46), 3 (E93), X5 (E70), 3 (E90), 3 (E92)
For cars commercial, passanger
Brand of the car BMW, Fiat, Citroen, Volvo, Peugeot
Plugs CVBS-RCA
Use OEM
Diagonal 4,3"
Signal analog
Weight 0.947 kg
