RM LCD PSA2 Mirror display 4.3" 2ch RCA 12V

| RM LCD PSA2

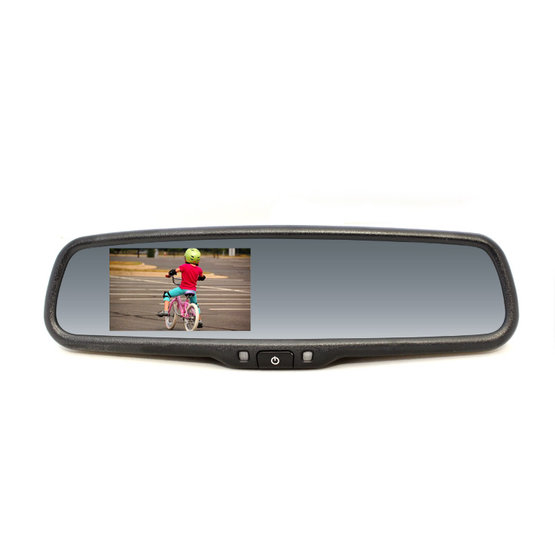

Rearview mirror with monitor 4.3" integrated, for Peugeot, Citroen, Fiat cars, is used to display the parking camera image and also to connect another video signal. The rearview mirror is installed instead of the original central car mirror.


Discontinued

Rearview mirror with monitor 4.3" integrated, for Peugeot, Citroen, Fiat cars, is used to display the parking camera image and also to connect another video signal. The rearview mirror is installed instead of the original central car mirror.

After the reverse gear is shifted, a real image is displayed behind the vehicle for easier and safer reversing and parking.

Technical parameters:

  • supply voltage: 12V
  • color resolution: 16.7M colors
  • display screen: TFT LCD
  • power consumption: 8W
  • display resolution: 480 (H) x 272 (H)
  • display diagonal: 4.3"
  • video inputs: 2x connector (RCA - CINCH)
  • activation of the input: automatically after the video signal appears
  • automatically adjust the brightness of the display
  • TV standard: PAL / NTSC (automatic)
  • operating temperature: -20 to + 70 °C
  • total dimensions: 80 x 270 x 42mm

Supported cars:
Note: We recommend that you check the compatibility with your car's holder type before ordering.

  • CITROEN Jumper (06-)
  • CITROEN Nemo (08-)
  • FIAT Ducato (98-06)
  • FIAT Ducato (06-)
  • FIAT Punto
  • FIAT Fiorino (08-)
  • FIAT Scudo [270] (1/07-)
  • PEUGEOT Boxer
  • PEUGEOT Bipper (08-)
  • IVECO Daily V. (14->)
  • MITSUBISHI Pinnin (00-)

Note: For cars without rain sensor only!

Parameters

Model of the car Bipper, Pinnin, Daily V., Nemo, Jumper, Punto, Ducato, Scudo, Fiorino, Boxer
Brand of the car Mitsubishi, Iveco, Citroen, Fiat, Peugeot
Plugs CVBS-RCA
For cars commercial, passanger
Use OEM
Diagonal 4,3"
Signal analog
Weight 0.761 kg
